ASSEMBLY

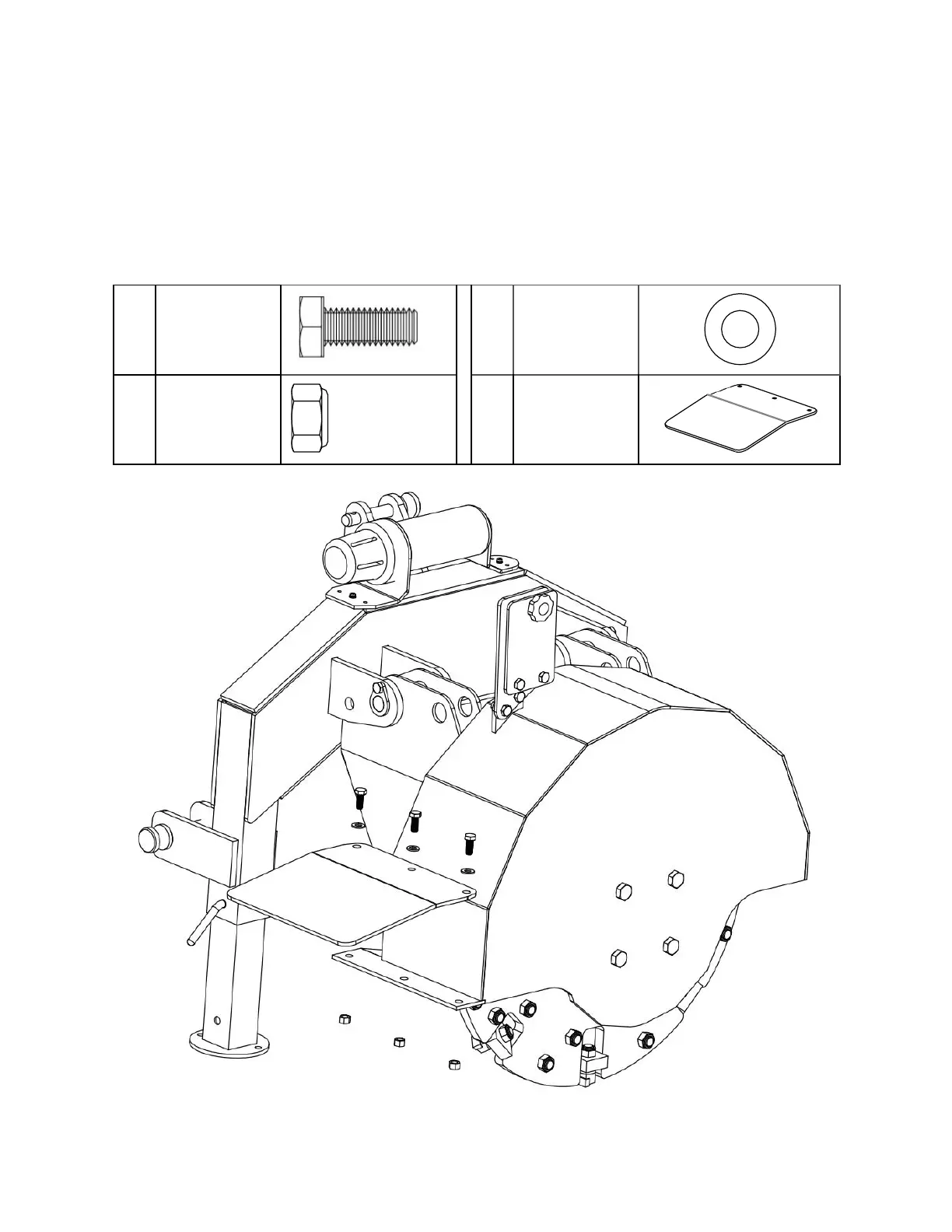

1. DEFLECTOR
Using the hardware listed below and two (2) 13 mm sockets/wrenches, assemble the deflector (#25) to
the flywheel housing as shown.
3x
M10 X 35 mm
Hex Bolt
#39
3x
M10 Flat
Washer
#47
3x
M10 Lock Nut
#52
1x
Deflector
#25
