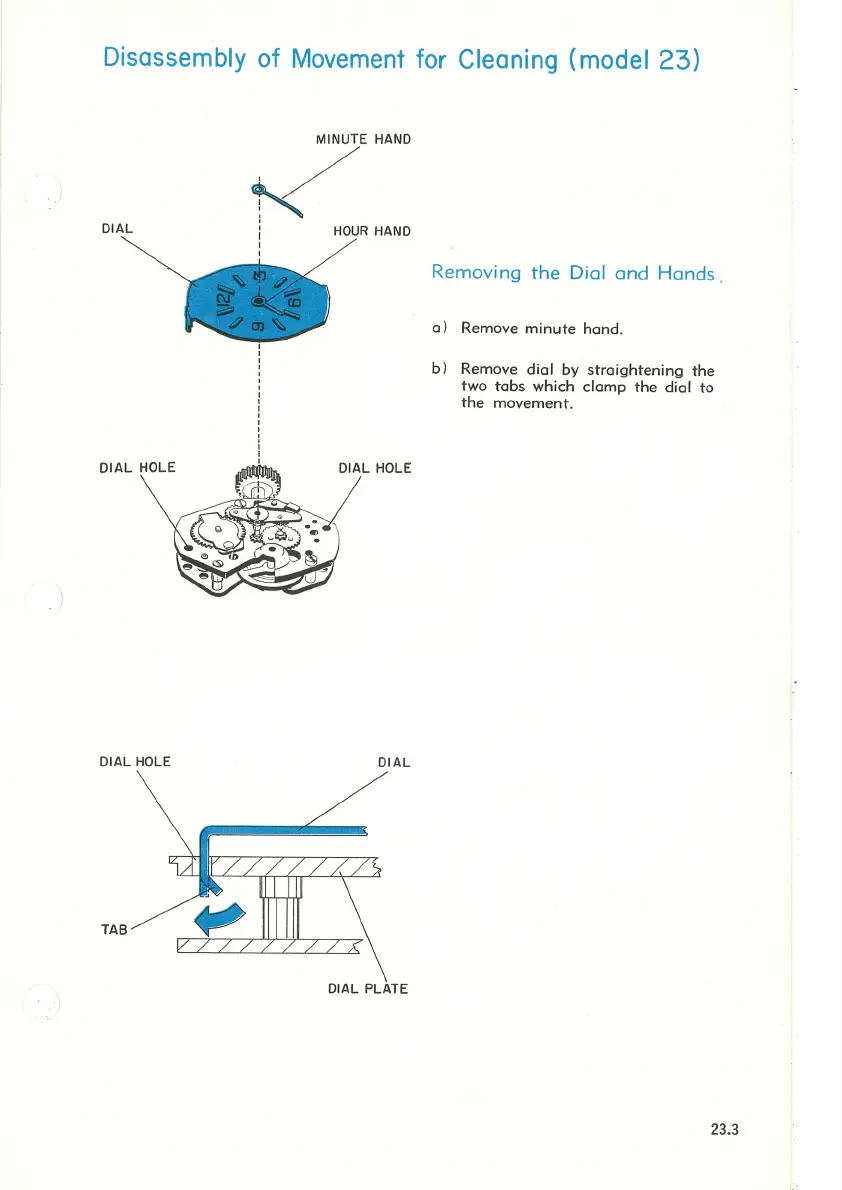

Disassembly
of
Movement
for
Cleaning
(model
23)
DIAL
DIAL HOLE
TAB
MINUTE
HAND
·/
\'<
J
HOUR
HAND
I
'
DIAL
DIAL
PLATE
Removing
the
Dial
and
Hands
a)
Remove
minute
hand
.
b)
Remove
dial by
straightening
the
two
tabs
which
clomp
the
dial
to
the
movement.
23.3
