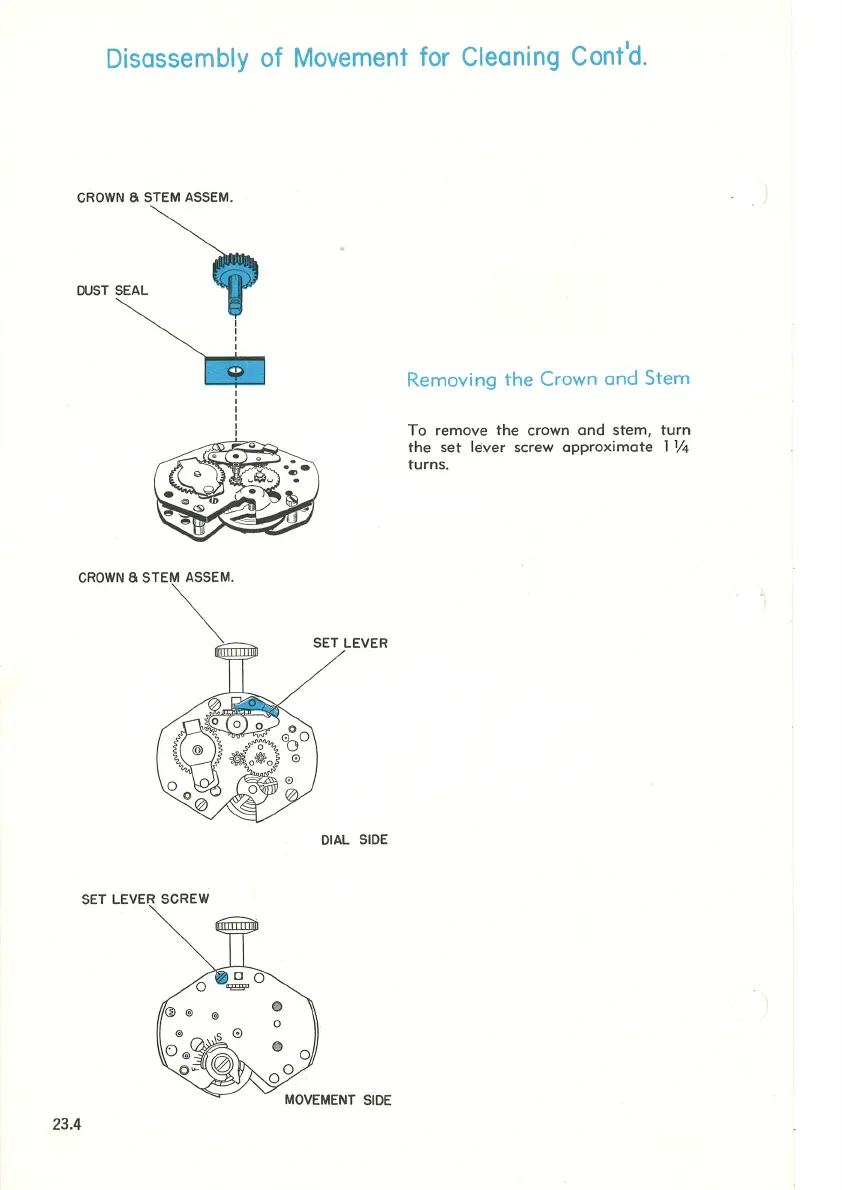

Disassembly
of
Movement
for
Cleaning
Cont'd.
CROWN
8 ASSEM.
DUST
SEAL
SET
LEVER SCREW
23.4
DIAL
SIDE
Removing
the
Crown
and
Stem
To
remove
the
crown
and
stem,
turn
the
set
lever screw
approximate
1
V4
turns.
