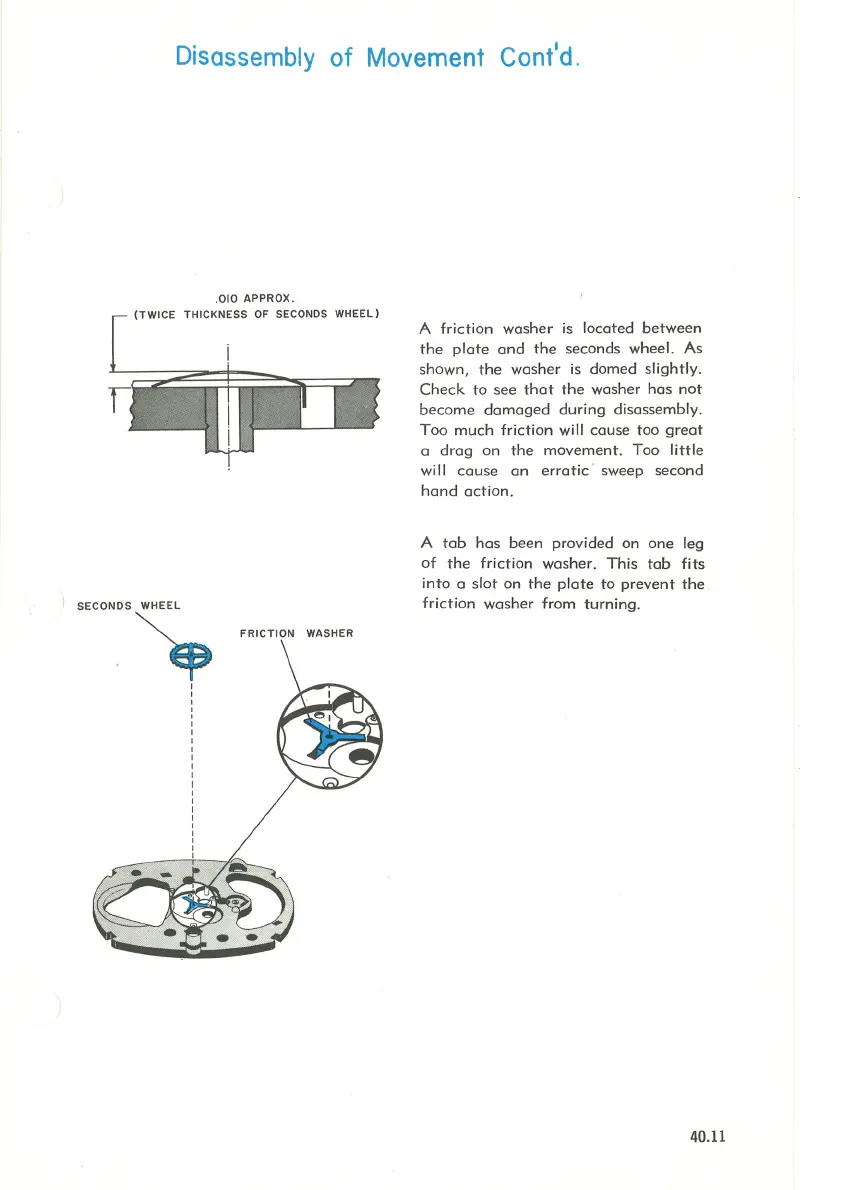

Disassembly
of
Movement
Cont'd
.
.
010
APPROX.
THICKNESS
OF
SECONDS
WHEEL)
FRICTION
WASHER
A
friction
washer
is
located
between
the
plate
and
the
seconds
wheel. As
shown,
the
washer
is
domed
slightly.
Check
to
see
that
the
washer
has
not
become
damaged
during
disassembly.
Too
much
friction will
cause
too
great
a
drag
on
the
movement
.
Too
little
will
cause
on
erratic
· sweep
second
hand
action
.
A
tab
has
been
provided
on
one
leg
of
the
friction
washer
. This
tab
fits
into
a
slot
on
the
plate
to
prevent
the
friction
washer
from
turning.
40.11
