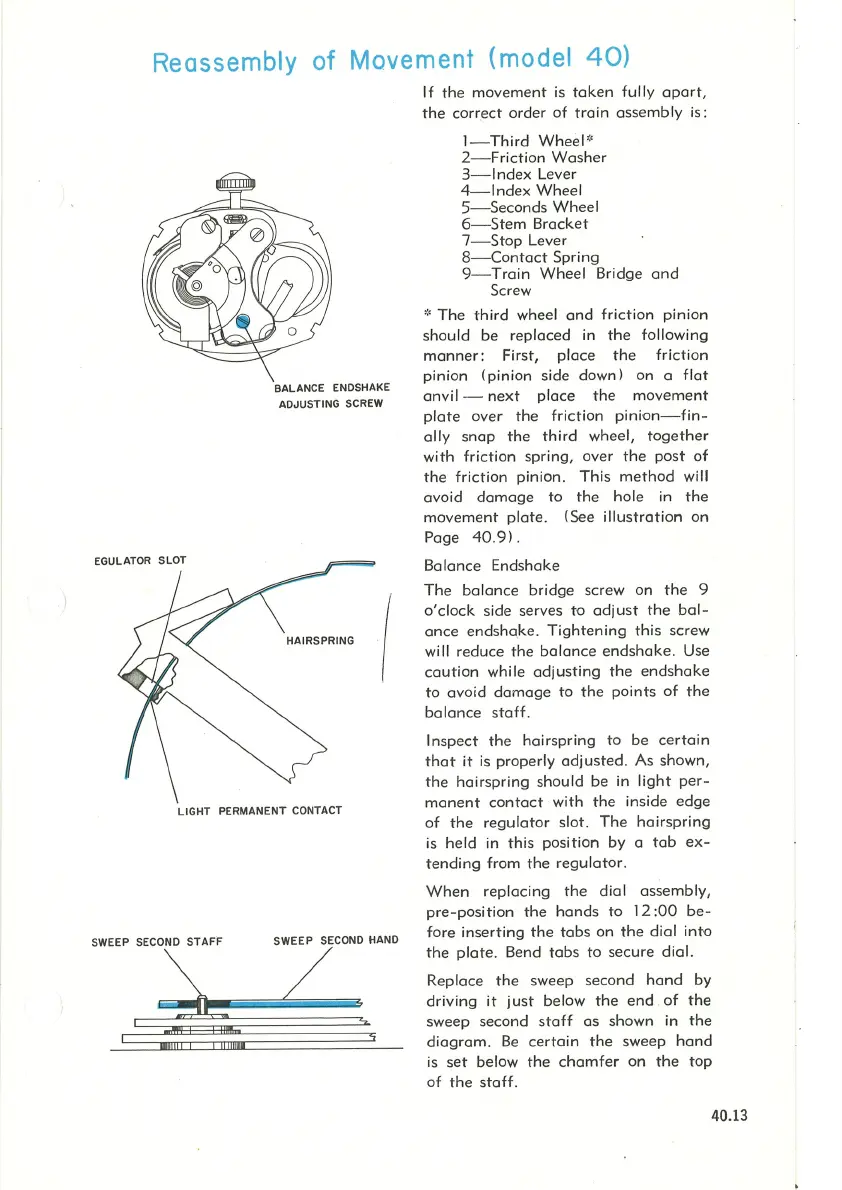

Reassembly
of
Movement
(model
40)
BALANCE
ENDSHAKE
ADJUSTING
SCREW
I
LIGHT
PERMANENT
CONTACT
SWEEP
SECOND
STAFF
~;
5
If
the
movement
is
token
fully
aport,
the
correct
order
of
train
assembly
is:
!-Third
Wheel''
2-Friction
Washer
3-lndex
Lever
4-lndex
Wheel
5-Seconds
Wheel
6-
Stem
Brocket
7-Stop
Lever
8-
Contoct
Spring
9-
Train
Wheel
Bridge
and
Screw
''
The
third
wheel
and
friction pinion
should
be
replaced
in
the
following
manner:
First,
place
the
friction
pinion (pinion side down)
on
a
flat
anvil-
next
place
the
movement
plate
over
the
friction
pinion-fin-
ally
snap
the
third
wheel,
together
with friction spring,
over
the
post
of
the
friction pinion. This
method
will
ovoid
damage
to
the
hole
in
the
movement
plate
.
(See
illustration
on
Page
40.9).
Balance
Endshoke
The
balance
bridge
screw
on
the
9
o'clock
side serves
to
adjust
the
bal-
ance
endshqke.
Tightening
this
screw
will
reduce
the
balance
endshoke.
Use
caution
while
adjusting
the
endshoke
to
ovoid
damage
to
the
points
of
the
bo
lance
staff.
Inspect
the
hairspring
to
be
certain
that
it is
properly
adjusted.
As
shown,
the
hairspring
should
be
in
light
per
-
manent
contact
with
the
inside
edge
of
the
regulator
slot
.
The
hairspring
is
held
in
this
position
by
a
tob
ex-
tending
from
the
regulator
.
When
replacing
the
dial as
sembly,
pre-position
the
hands
to
12
:00
be-
fore
inserting
the
tabs
on
the
dial
into
the
plate
.
Bend
tabs
to
secure
dial.
Replace
the
sweep
second
hand
by
driving
it
just
below
the
end
of
the
sweep
second
staff
as
shown
in
the
diagram.
Be
certain
the
sweep
hand
is
set
below
the chamfer
on
the
top
of
the
staff.
40.
13
