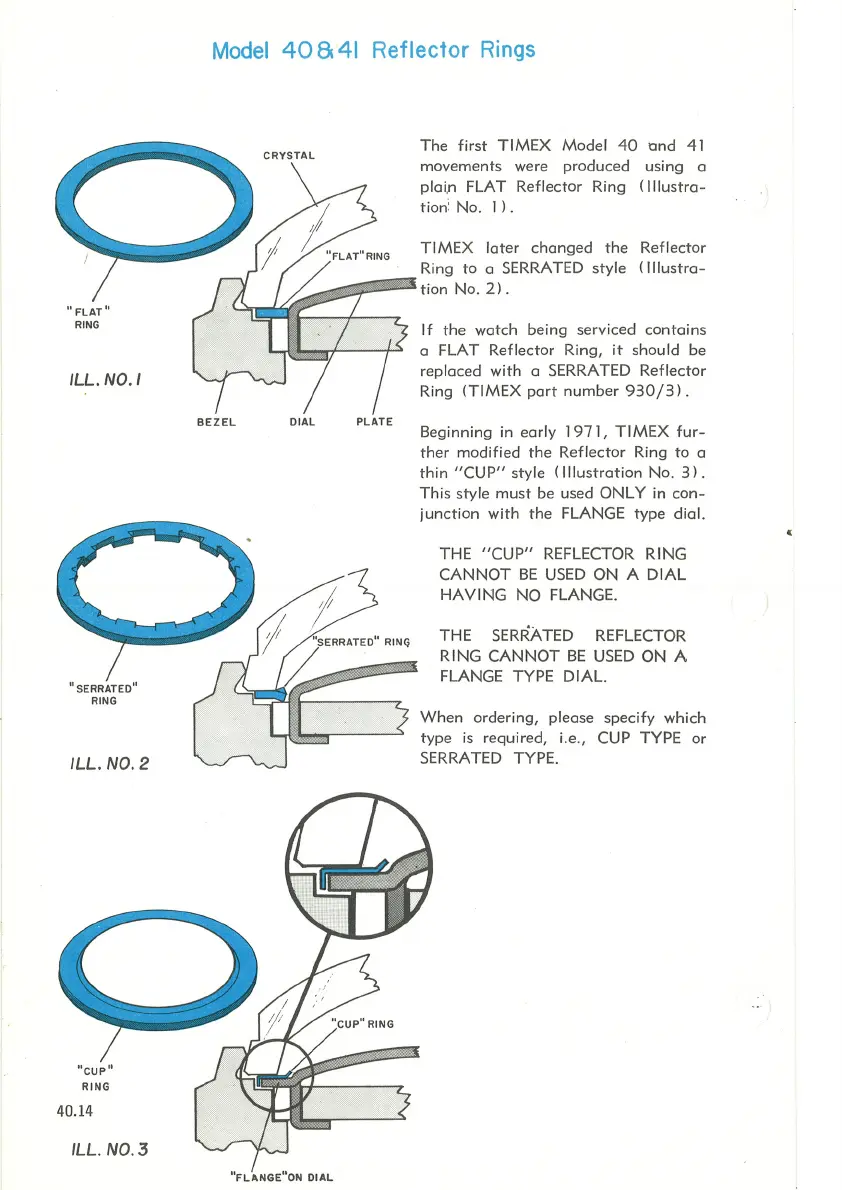

Model 40 8 41 Reflector Rings
BEZEL
The first TIMEX Model 40 ond 41
movements were produced using o
plai,n FLAT
Reflector Ring ( Illustra-
tion : No. 1 ) .
TIMEX later changed the Reflector
Ring to a SERRATED style ( lllustra-
~~-·-IZ!il tion No. 2) .
DIAL PLATE
If the watch being serviced contains
a FLAT Reflector Ring, it should be
replaced with a SERRATED Reflector
Ring (TIMEX part number 930/3) .
Beginning in early 1971, TIMEX fur-
ther modified the Reflector Ring to a
thin "CUP" style (Illustration No . 3) .
This style must be used ONLY in con-
junction with the FLANGE type dial.
THE "CUP" REFLECTOR RING
CANNOT BE USED ON A DIAL
HAVING NO FLANGE.
THE SERRATED REFLECTOR
RING
CANNOT BE USED ON A
FLANGE TYPE DIAL.
When ordering, please specify which
type is required, i.e., CUP TYPE or
SERRATED TYPE.
