Connection schematic
The MC1100 is able to substitute the control unit completely. It supports every kind of reading unit
(normal or continuously clocking) without any hard- or software changes to your system.

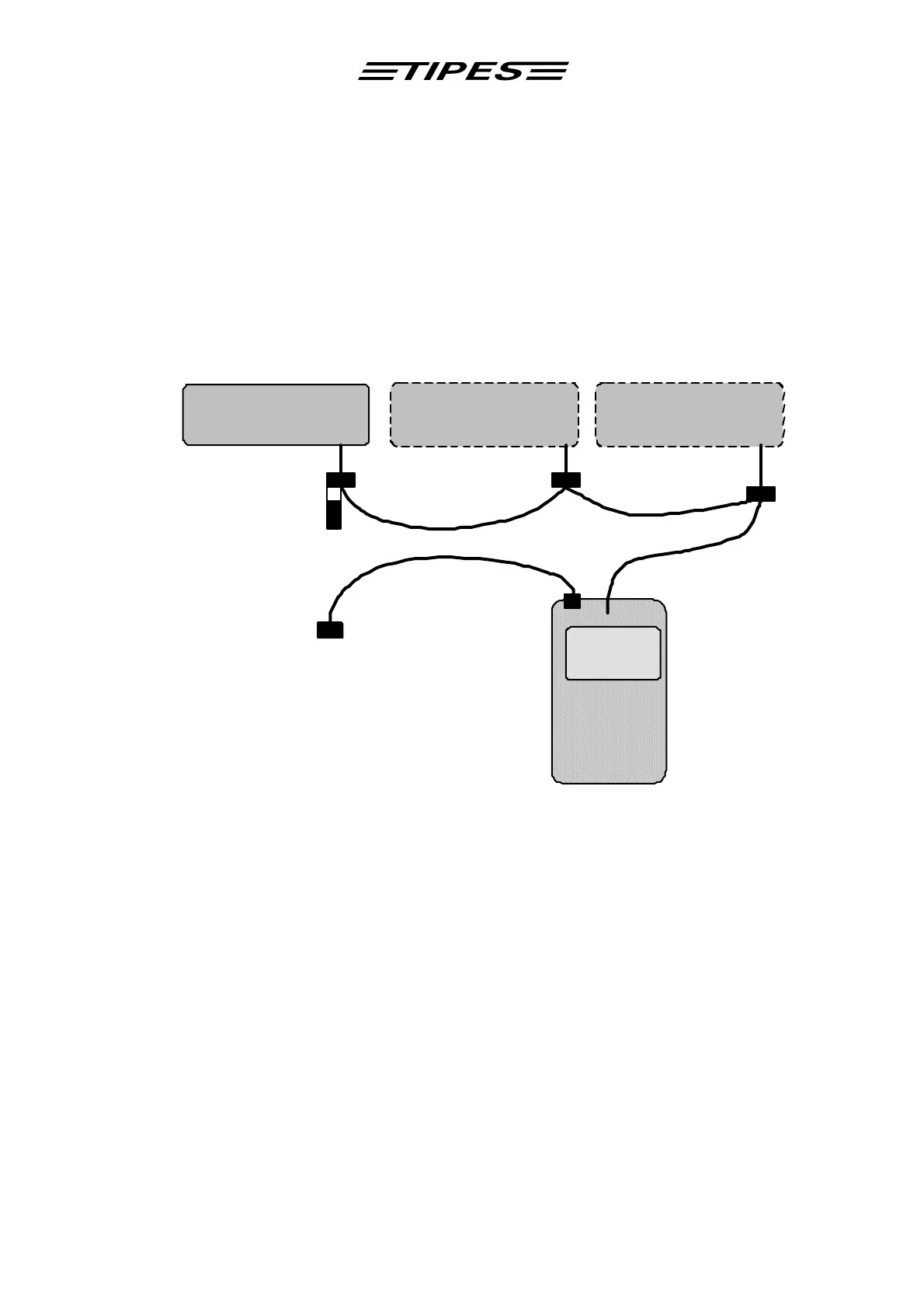

Connecting MC1100 within USTB environment
End of line connector
Antenna
1
MC1100
Powerplug
Antenna 2
Antenna 3
If you want to connect a 12 V accumulator or a battery for power backup functions please use a
backup adapter. For set up those please refer to the manual.
Connecting MC1100 to basketing unit
The Basketing unit is unsed together with MC1100 for allocation and basketing. Doing the allocation
procedure you have to connect a pc additionally to the basketing unit. This is used to assigned the
electronic ring no. to the association ring no. of the pigeon.
The basketing is used to put your pigeons on an official race. For more details please refer to
basketing unit manual.
