67 of 90
7 Electrical equipment
Fuses

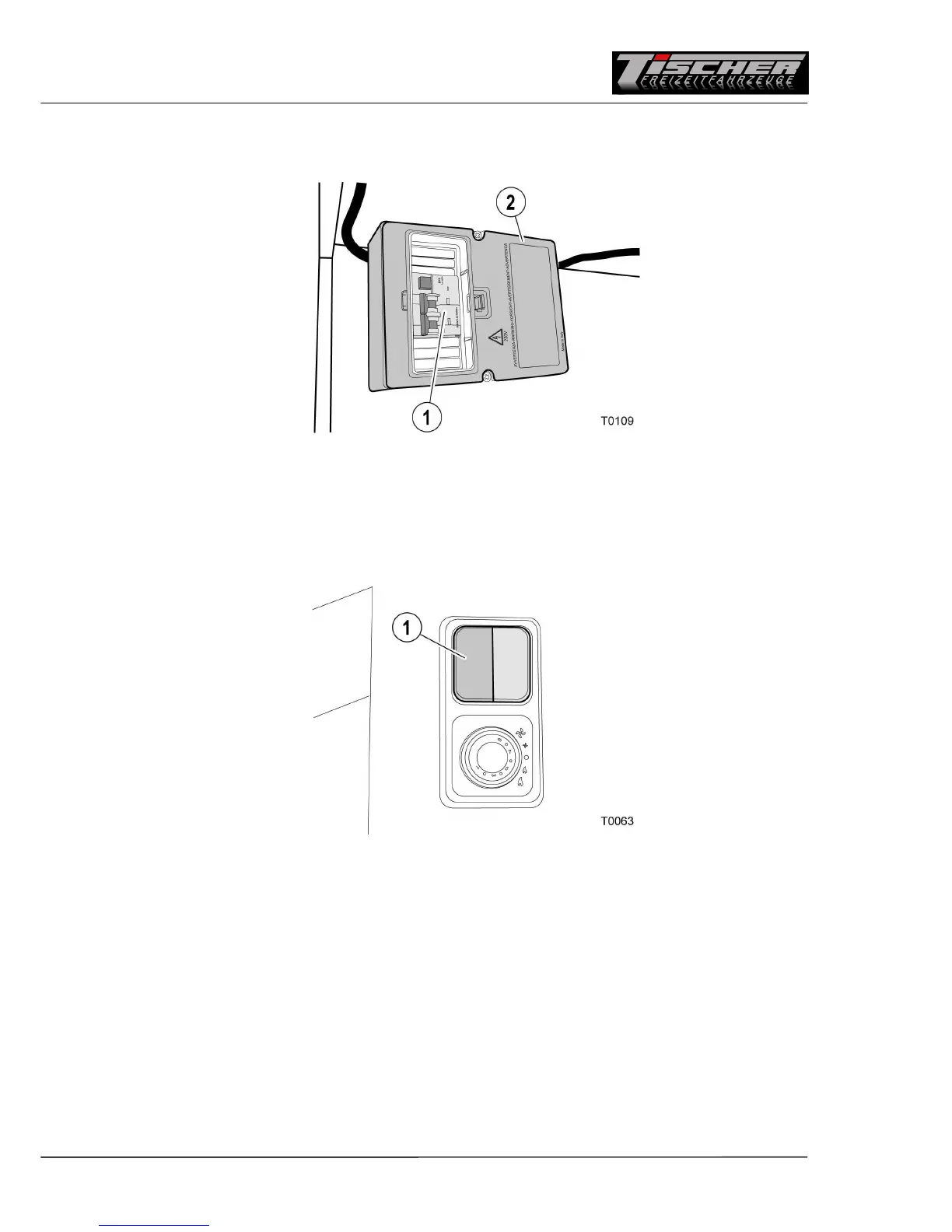

The 220 Volt system is protected with 16 A circuit breaker 1.
Fuse box 2 with circuit breaker 1 and PRCD (portable residual current circuit breaker) is
accommodated in the cabinet close to the heater.
7.1 Lighting
Ceiling lights (without board control system)
In the direction of travel, the switches for the ceiling spots are located on the left side on the furniture
element.
Left switch 1 switches the right ceiling light and vice versa.
