75 of 90

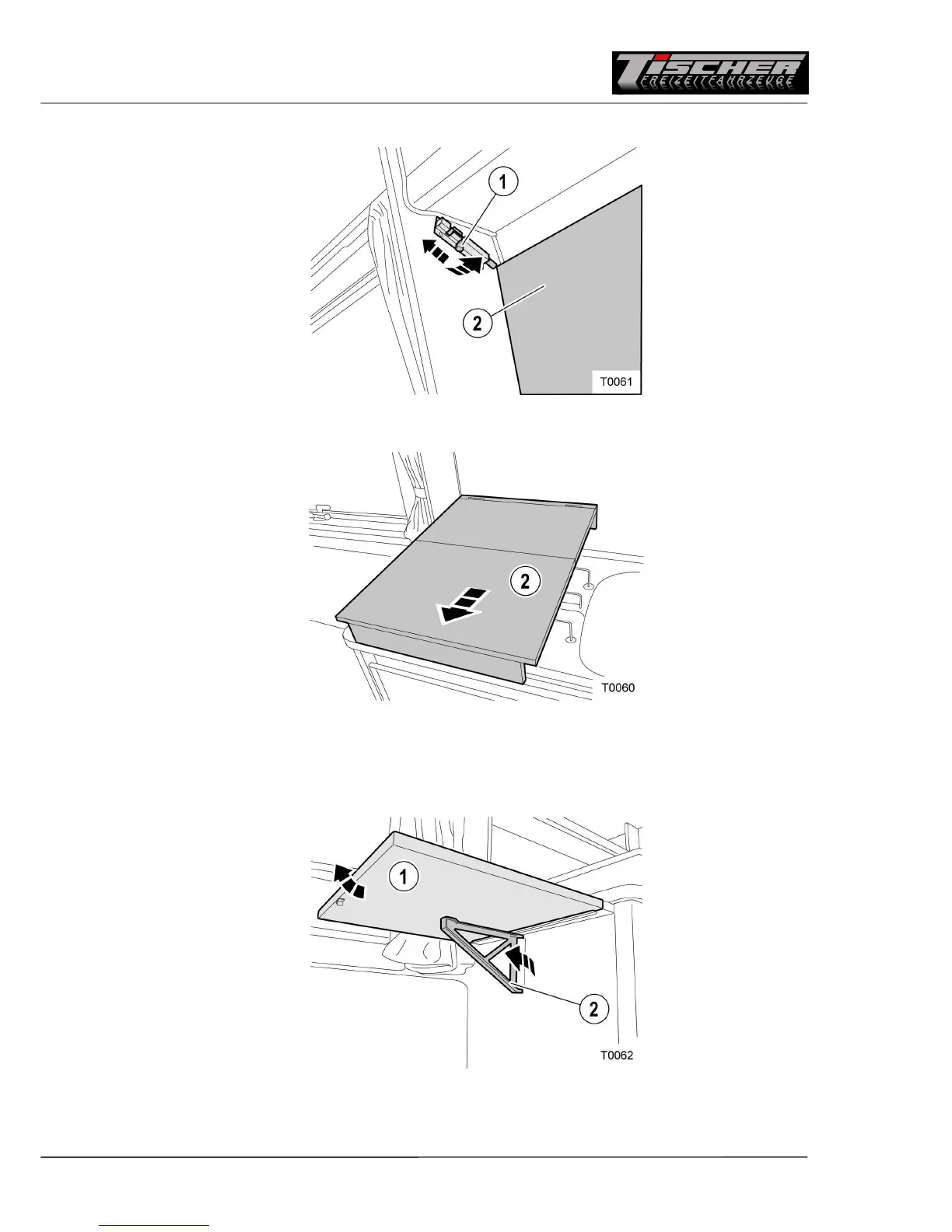

9.2 Hob cover
In order to fold down the cover for the hob, hold cover 2, loosen locking mechanism 1 and fold down
cover 2. In order to fold the cover up, proceed in reverse order.
9.3 Extending the working area (special equipment)
In order to unfold the working area extension 1, lift working area 1 and pivot support 2 to the left. In
order to fold working area 1 down, proceed in reverse order.
