10 Sanitary installation
10.1 Fresh water supply (standard equipment)

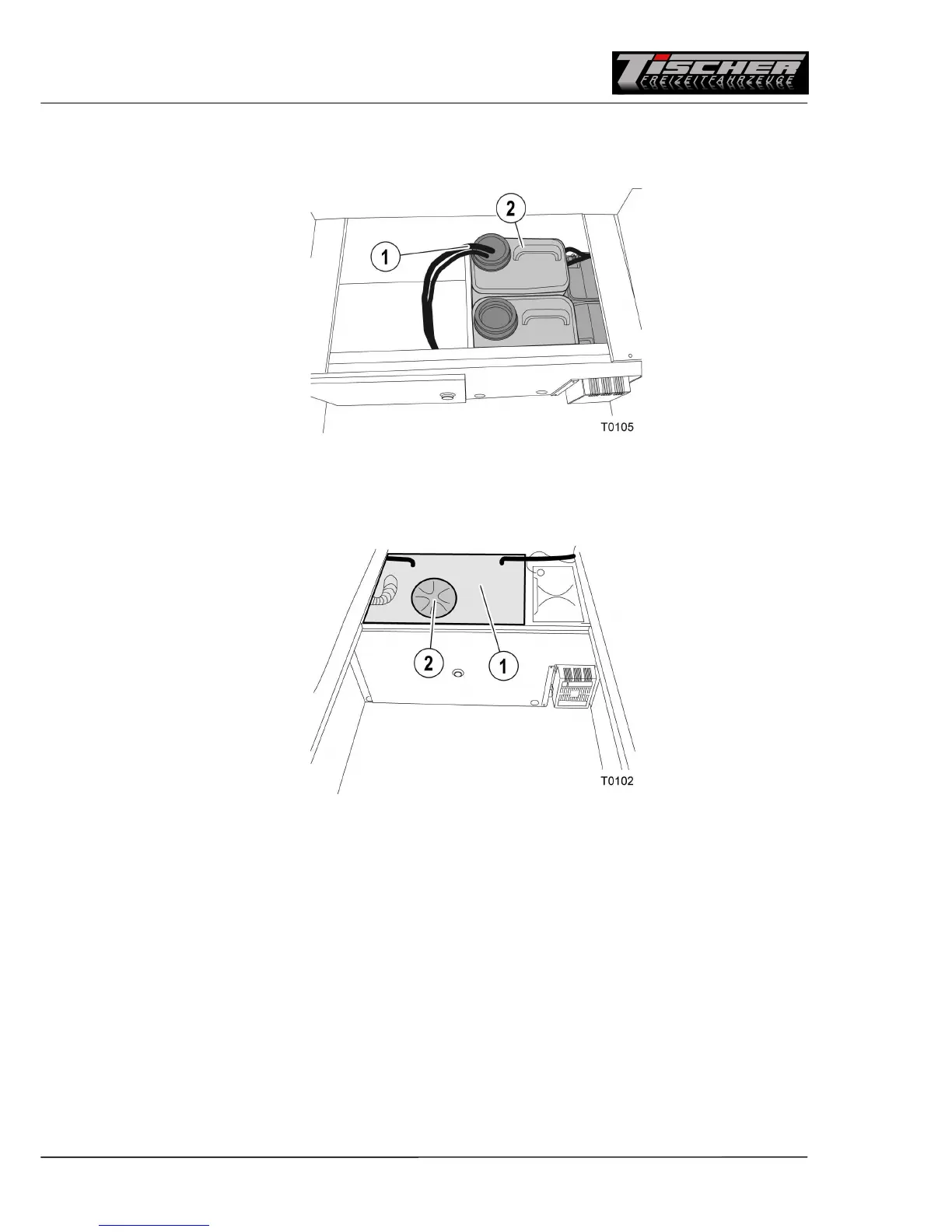

By default the cabin is equipped with two fresh water tanks 2 with 15 litres capacity each. An electrical
submersible pump 1 pumps water to the tapping points in kitchen and bathroom.
10.2 Fresh water supply (215 to 260 and 305 S with L equipment only)
When L equipment is configured, the cabin is equipped with one fresh water tank with 80/97 litres
capacity. A pressure pump pumps water to the tapping points.
Water tank 1 is located under the centre seat bench and is filled by hose from the outside via a filler
neck (see chapter Water tank). The tank is equipped with an overflow to the outside. In order to clean
the tank, open cleaning opening 2 (screw plug).
