Make sure all wheel height adjustments are same, otherwise it will lead to uneven mowing.

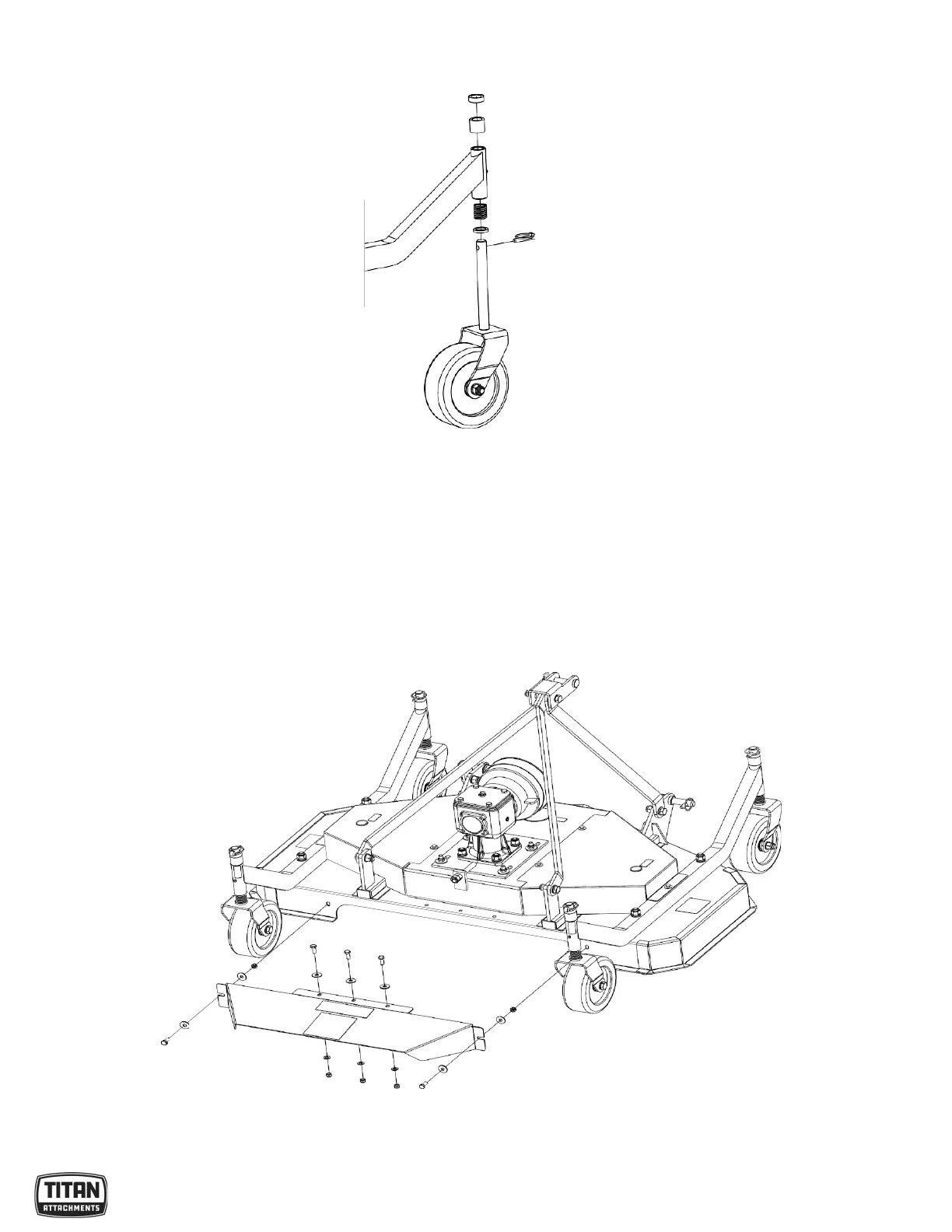

FIGURE 11: Installing wheel Bracket and Fittings
Step4: Installing discharge guide and Fittings
Remove the packaging of discharge guide and fittings.
Assemble discharge guide on mower deck body using included fittings.
Parts: 4pcs of bolts M10x25, 3pcs of plain washers 10, 7pcs of large plain washer 10 and 5pcs of locknuts M10.
Tighten all locknuts and bolts completely.
FIGURE 12: Installing Discharge Guide and Fittings
