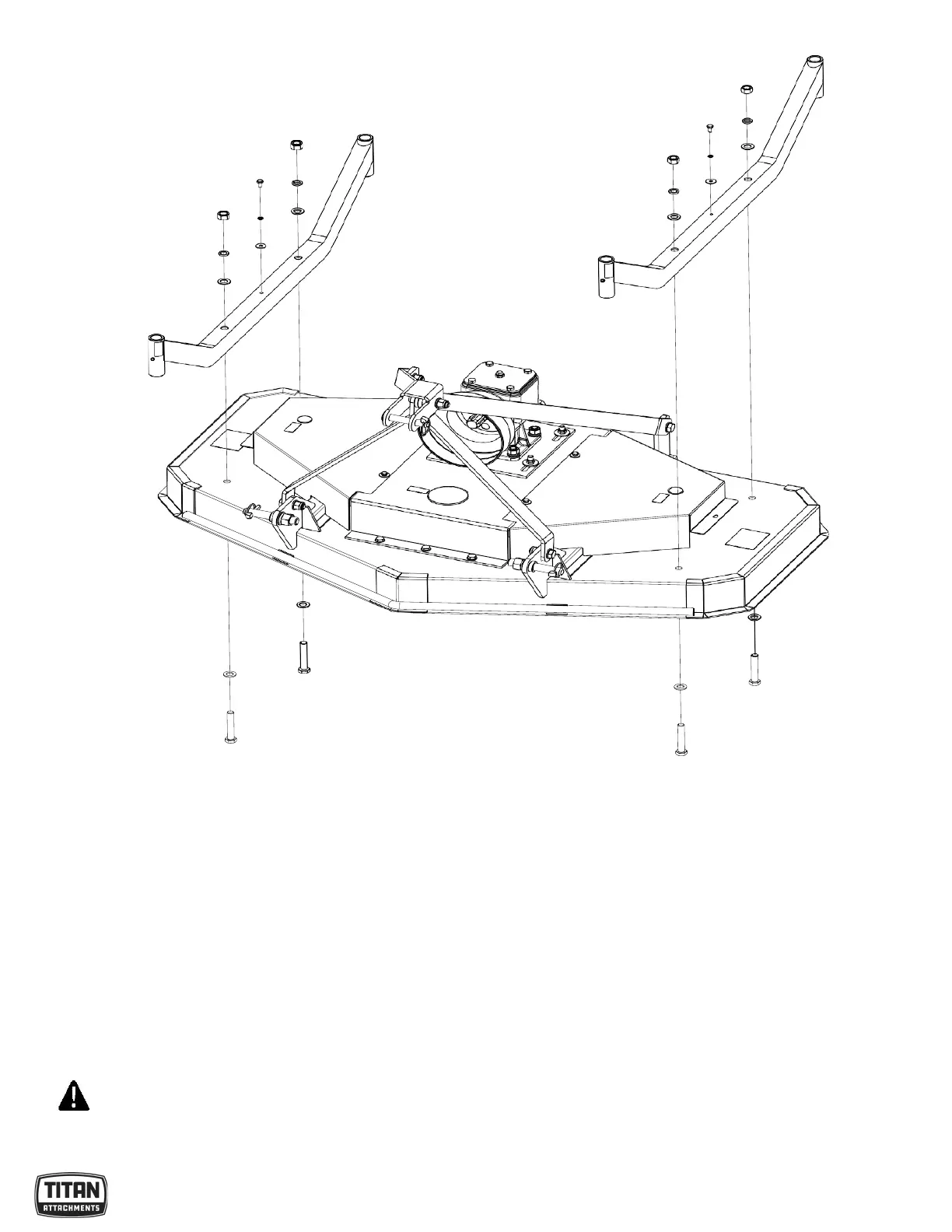

FIGURE 10: Installing Wheel Frame and Fittings
Step3: Installing wheel bracket assembly and Fittings
Remove the packaging of wheel bracket assembly and fittings. Assemble wheel bracket
assemblies on wheel frame as well as spacers.
Through the combination of spacers with different height to get the mowing height you need.
Parts: 4pcs of wheel bracket assemblies. Use safety lock
pin to hold wheel bracket.
WARNING
To Next Page
