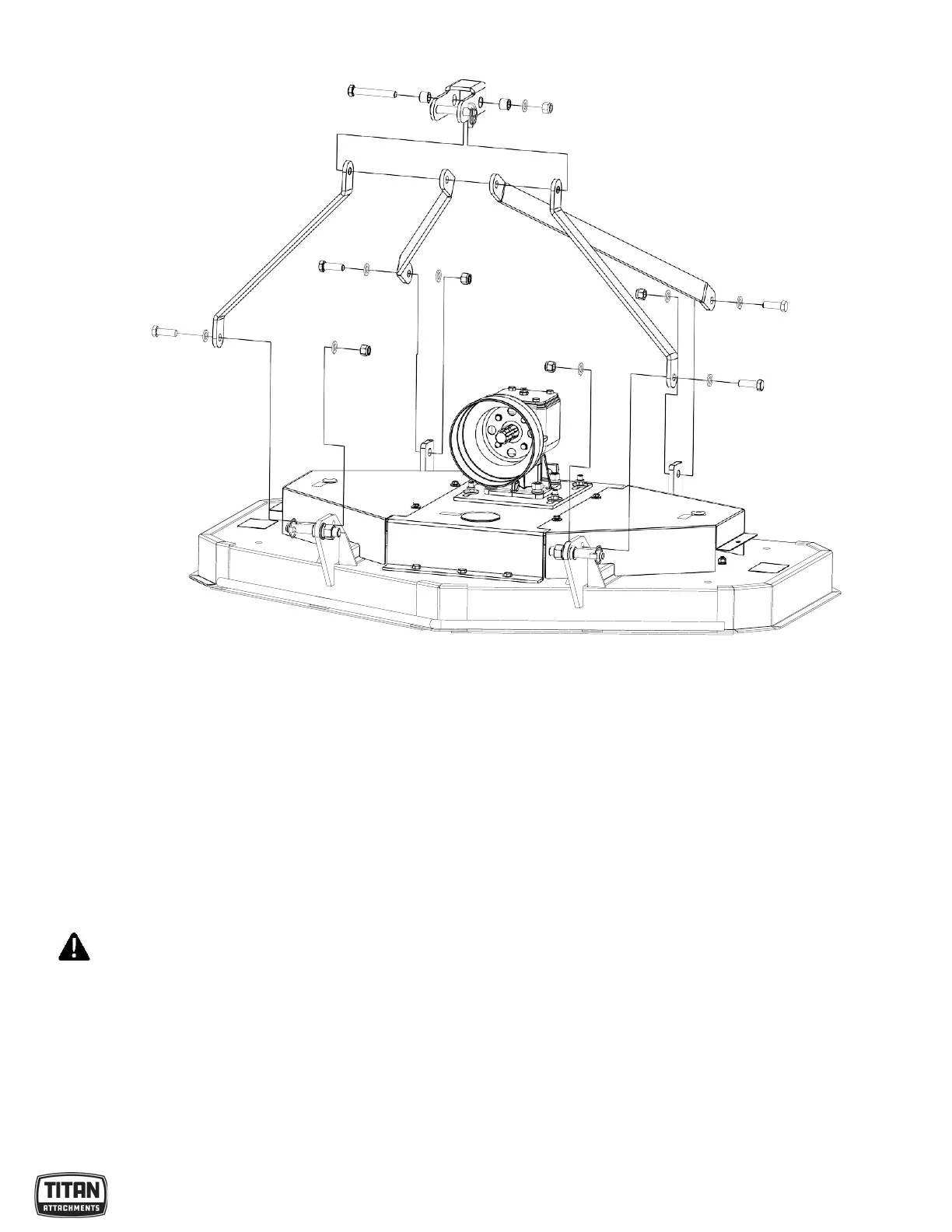

FIGURE 9: Installing Long, Short Pivot Bar, Upper Lift Bracket and Fittings
Step2: Installing Wheel Frame and Fittings
Remove the packaging of wheel frame and fittings. Assemble 2pcs
of wheel frames on the mower deck body.
Parts: 4pcs of Bolts M16x95, 8pcs of plain washers 16, 4pcs of spring washers 16, 4pcs of nuts M16, 2pcs of bolt
M8x16, 2pcs of plain washers 8 and 2pcs of large plain washers 8.
Tighten nut and bolt completely.
WARNING
Raise the mower deck body to ensure that the wheel frame can be installed with enough
height.
To Next Page
