CO2 Mode
PPM Up: Increase the CO2 ppm if using the CO2 generator or CO2 regulator and compressed
CO2 tank.
Fuzzy Logic: Increase the CO2 ppm if using CO2 regulator and compressed CO2. This mode
applies fuzzy logic control to the CO2 output. Not for use with CO2 generators.
EXAMPLE:
PPM UP: using CO2 ppm with CO2 generator or CO2 regulator and compressed CO2 tank.
Fuzzy Logic: If using CO2 regulator and compressed CO2. This mode applies fuzzy logic control
to the CO2 output. NOT for use with CO2 generators.
Output
LED lit when the CO2 device is active.
After determining CO2 ppm set-point and the CO2 mode, install your desired CO2 generating
device (CO2 generator or CO2 regulator).
Controller Specifications:
• Max Amp: 10 amps @ 120V AC/60Hz
• Sensor Cord Length: 15 ft
• CO2 Range: : 400-2000 ppm
• CO2 Accuracy: +/- 100 ppm
• Weight: 1.1 lbs
• Dimensions: 5” x 2.75” x 3”
• Indoor Use Only
• Operating Temperature: 50° F to 95° F
• Maximum relative humidity: 95%

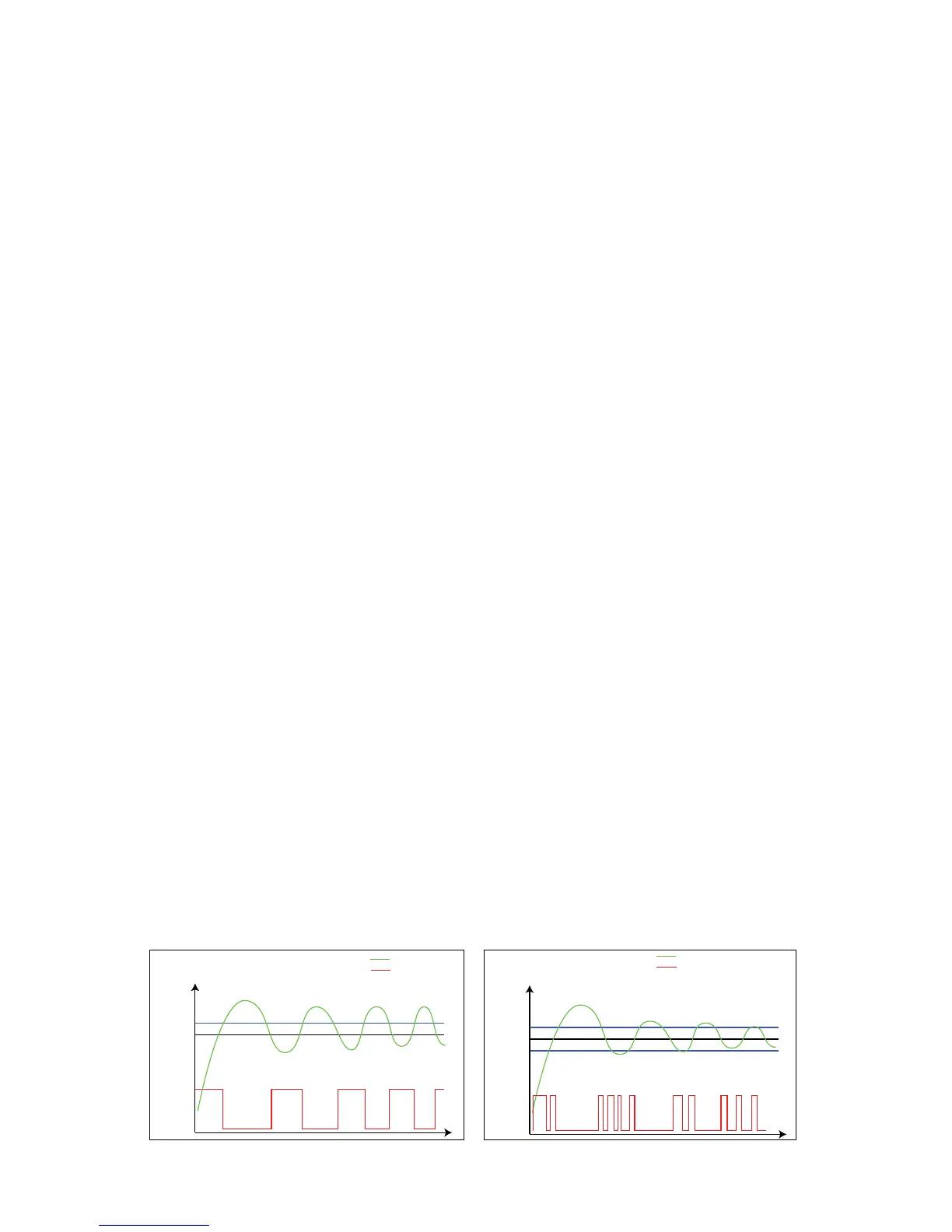

Controller Diagrams:
PPM Up
CO2
+Deadband
Setpoint
On
Off
Time
CO2 PPM
CO2 Generator
Fuzzy Logic
CO2
+Deadband
-Deadband
Setpoint
On
Off
Time
CO2 PPM
CO2 Tank - Solenoid Valve

Titan Controls ATLAS 9 Specifications

General

Brand	Titan Controls
Model	ATLAS 9
Category	Controller
Language	English
