Titan Controls SPARTAN Series - Installation Options; Installation Example

6 7

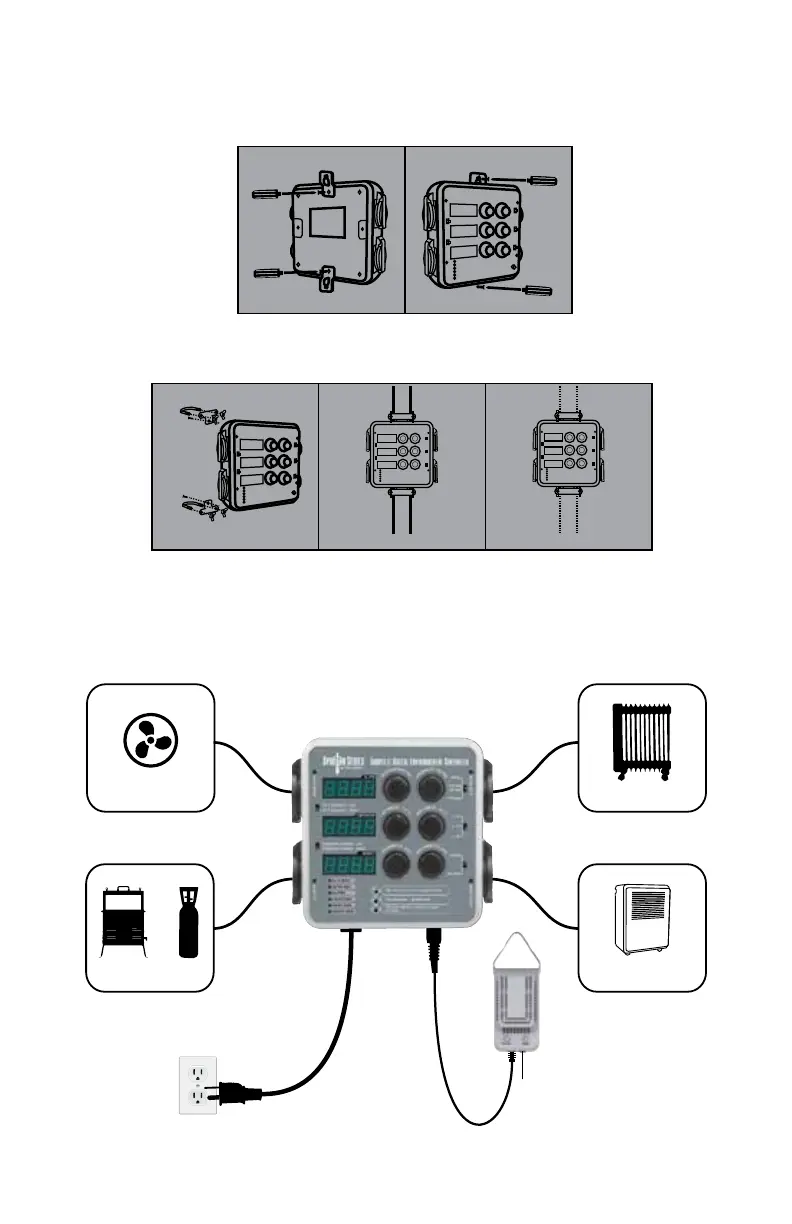

Installation Options
Option 1: Secure the unit to a wall
Option 2: Screw the controller to the grow tent tube with a U bolt
Installation Example
CO2 Generator / Tank
Exhaust Fan Heater
Humidifier / Dehumidifier
-OR-
Remote Sensor
120 Volt
Circuit
(1)
(2)(1)
(2) Installed inside the growtent.
(3) Installed outside the growtent.
(1)
