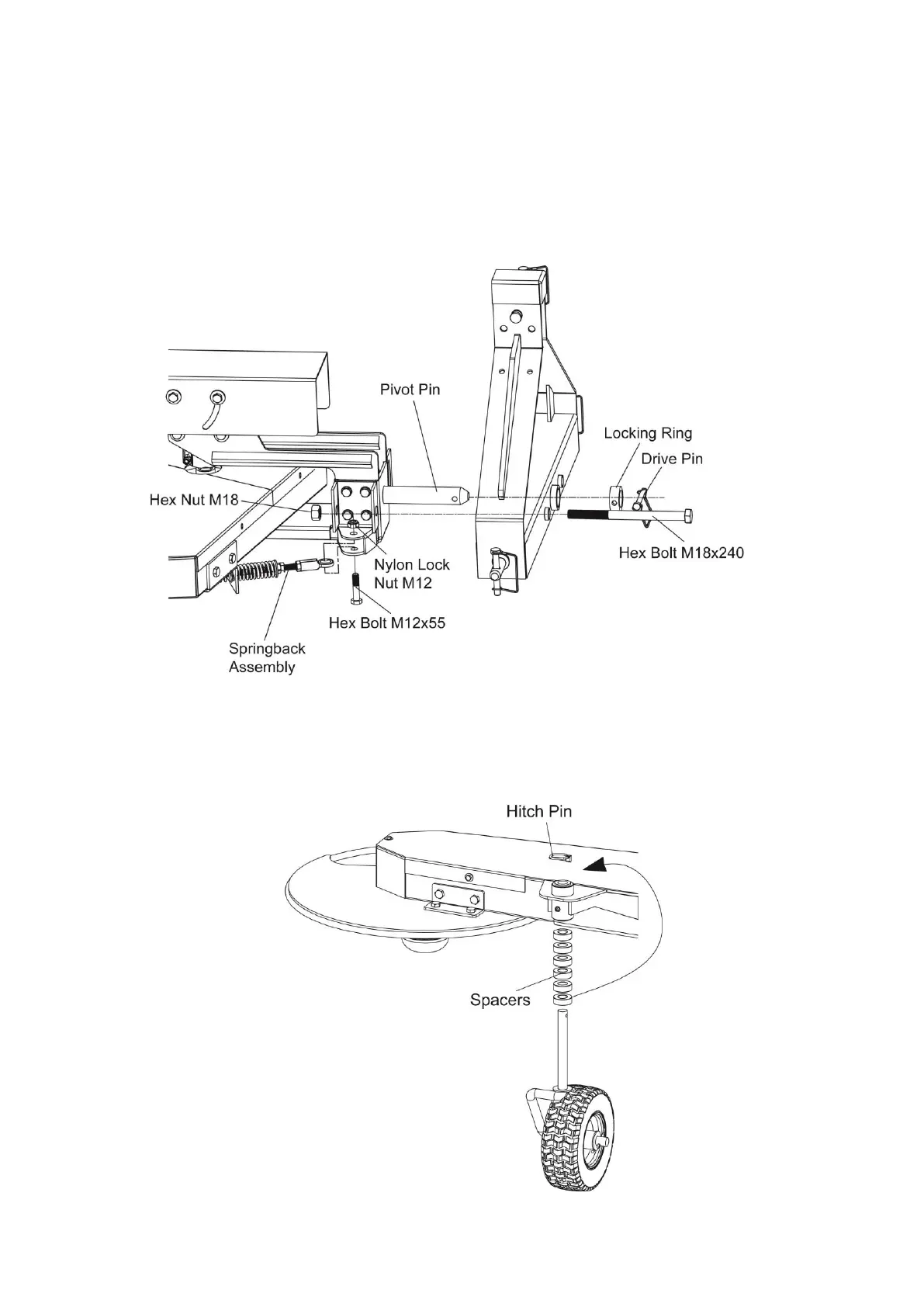

STEP 2: Attach the Trimmer/Mower to the 3-Point Bracket
1. Slide the pivot pin into the mounting hole of the 3-point bracket, then fixed with locking ring and drive
pin.
2. Insert the hex bolt M18x240 to the 3-point bracket and fixed with hex nut M18.
3. Attach the spring-back assembly to the frame using hex bolt M12x55 and nylon lock nut M12.
STEP 3 Installing the Wheel Assembly
1. Insert the wheel shaft into the wheel support from underneath, install the spacers on top and secure
with the hitch pin.
Note: The wheel height can be adjusted as needed.
