Titan 3PTTRIM - Specifications; Assembly Instructions; Step 1: Attach the 3-point Bracket to the Tractor

7
Tractor Requirements
Category 1, 25 to 45 HP Max.
Drive
Tractor PTO
PTO Speed
540 PRM
Number of Trimmer Cords
2
Belt
A-2565 V-Belt
Belt Adjustment
Spring Loaded Idler Pulley
Max. Wheel Base (distance from outside to
Outside of rear wheels)
80”
Cutting Height
5 Heights, 1.5” to 3.5”
Cutting Width
22”
Machine Weight
220LB
WARNING
Before performing the following procedure, be sure your tractor engine is off, brake is set, and the key
removed for safety.

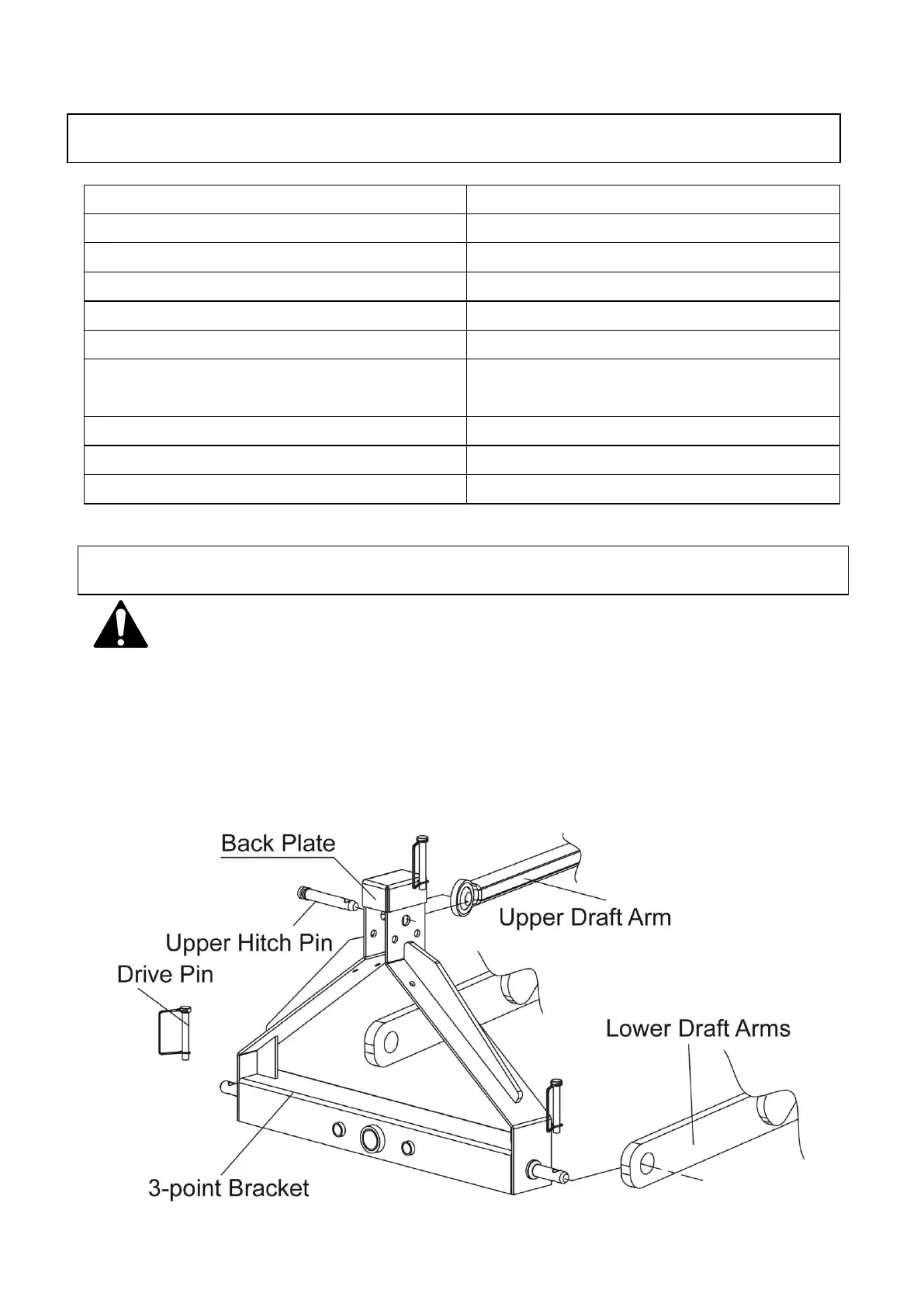

STEP 1: Attach the 3-point Bracket to the Tractor
1. Position the 3-point bracket at the rear of the tractor with the back plate facing away from the back of
the tractor. The opposite side of the 3-point bracket facing the upper draft arm is open.
2. Attach the 3-point bracket to the tractor and secure with drive pin.
Specifications
Assembly Instructions
