EN
Do not plug in the power cord until assembly is
complete.
TOOLS NEEDED
• Two 6” adjustable wrenches

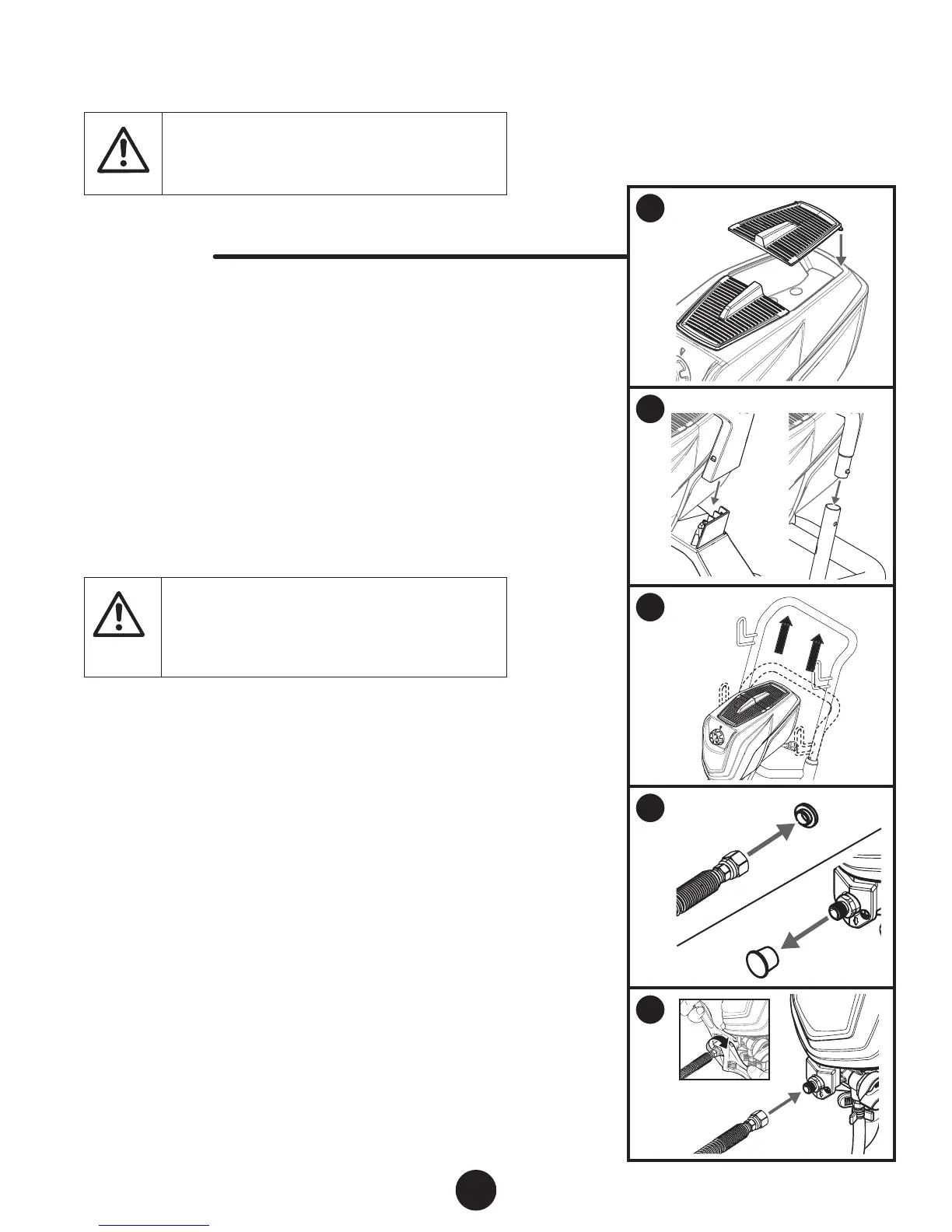

1. Attach the tool box doors to the top of the sprayer as shown.
Snap one peg into one of the orices, and then snap the other
peg into the other orice. The pegs on the ends will snap into
the orices on the unit.
2. STAND MODELS - Attach the handle:
Metal Frame - Line up the handle with the frame as shown.
Push the snap buttons on each side and drop the handle into
the frame. The snap-buttons will secure the handle into place.
Plastic Frame - Align the handle to the tabs on the unit and
press into place until it snaps (no snap buttons).
tention
Plastic Frame - Do not attempt to remove the
plastic handle. Removal can damage the snap
connection.
3. CART MODEL - Pull out the handle from the cart frame. Once it
reaches its maximum height, it will snap into place. To push
it back into the frame, push the snap buttons on the back of
the frame.
4. Remove the plug from inside the hose ttings and remove the
cap on the spray hose port. Discard both.
5. Thread one end of the high pressure spray hose to the spray
hose port. Hold the port with an adjustable wrench, and
tighten the hose with the other. Do not over-tighten.
