Care and maintenance
Trimming line
Replace the trimming spool
Replace the line spool when it is empty or worn.

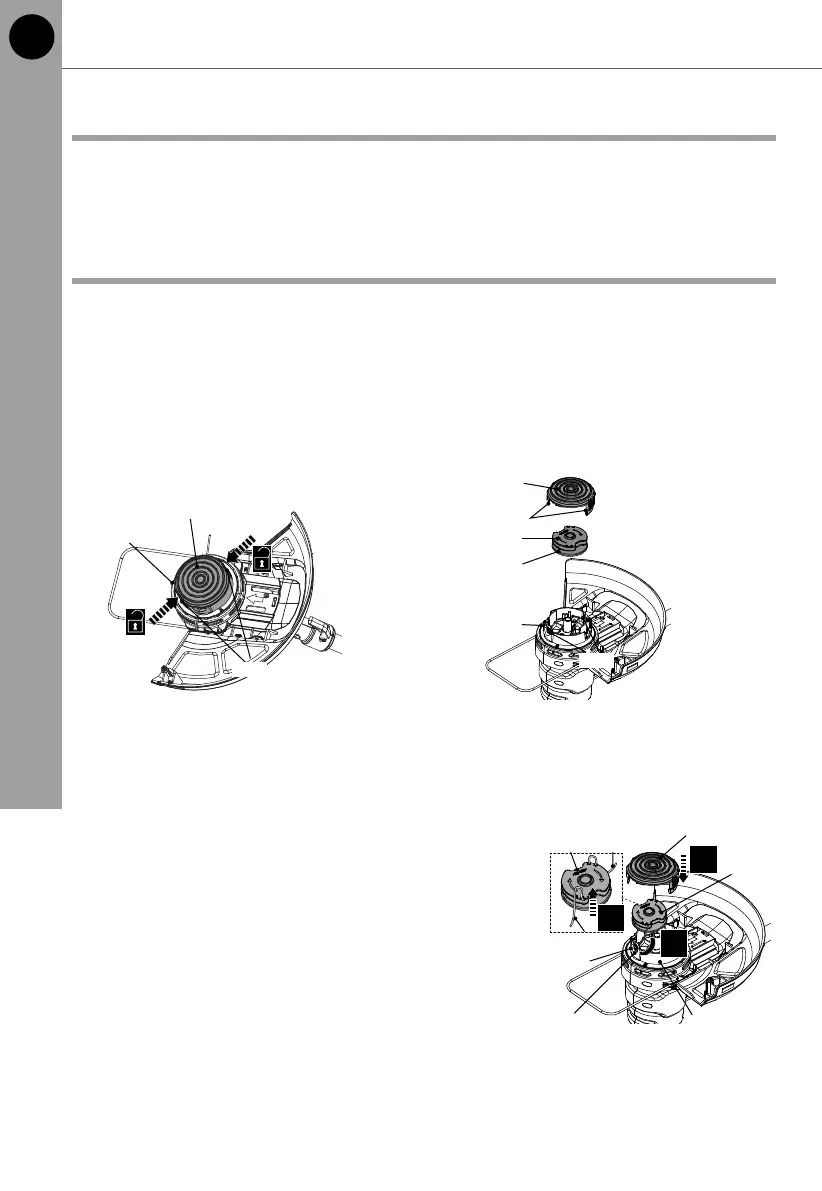

1. Turn the product upside down to access the trimming lines.
2. Hold the trimmer head (12) steady with one hand. Press the release latches
(12b) on both sides, then lift the cover (12a) and remove it (Fig. 24).
3. Remove the trimming spool (12c) from the housing (12e) (Fig. 25).
4. Clean the housing (12e) before inserting a new spool (12c) of the same type.
5. Pull one trimming line (12d) from the new spool for a length of approx. 15 cm.
6. Release the trimming line (12d) from the notches
and hold it in position. Avoid the trimmer line (12d)
scatted from the trimming spool (12c) (Fig. 26,
Step 1).
7. Lead the trimming line ending through the eyelet
(12h) on the housing (12e) (Fig. 26, Step 2).
8. Repeat the above steps (from 5 to 7) to lead
the other trimming line ending through the other
eyelet (12h).
9. Insert the trimming spool (12c) into the housing
(12e) (Fig. 26, Step 3). Twist the spool until it
locks into place.
10. Ret the cover (12a) and make sure it snaps into place.
Guard
1. Keep the guard (11) clean and free of debris. Remove trimmings.
2. Replace the guard (11) with one of the same type when it is worn or shows
damage.
