Operation
Signal input gain control
M series mixer-amplifier can accept variable and wide range input signal with trim pot.
Adjusts the trim pot in a range of 44dB to accept variabe external equipments.

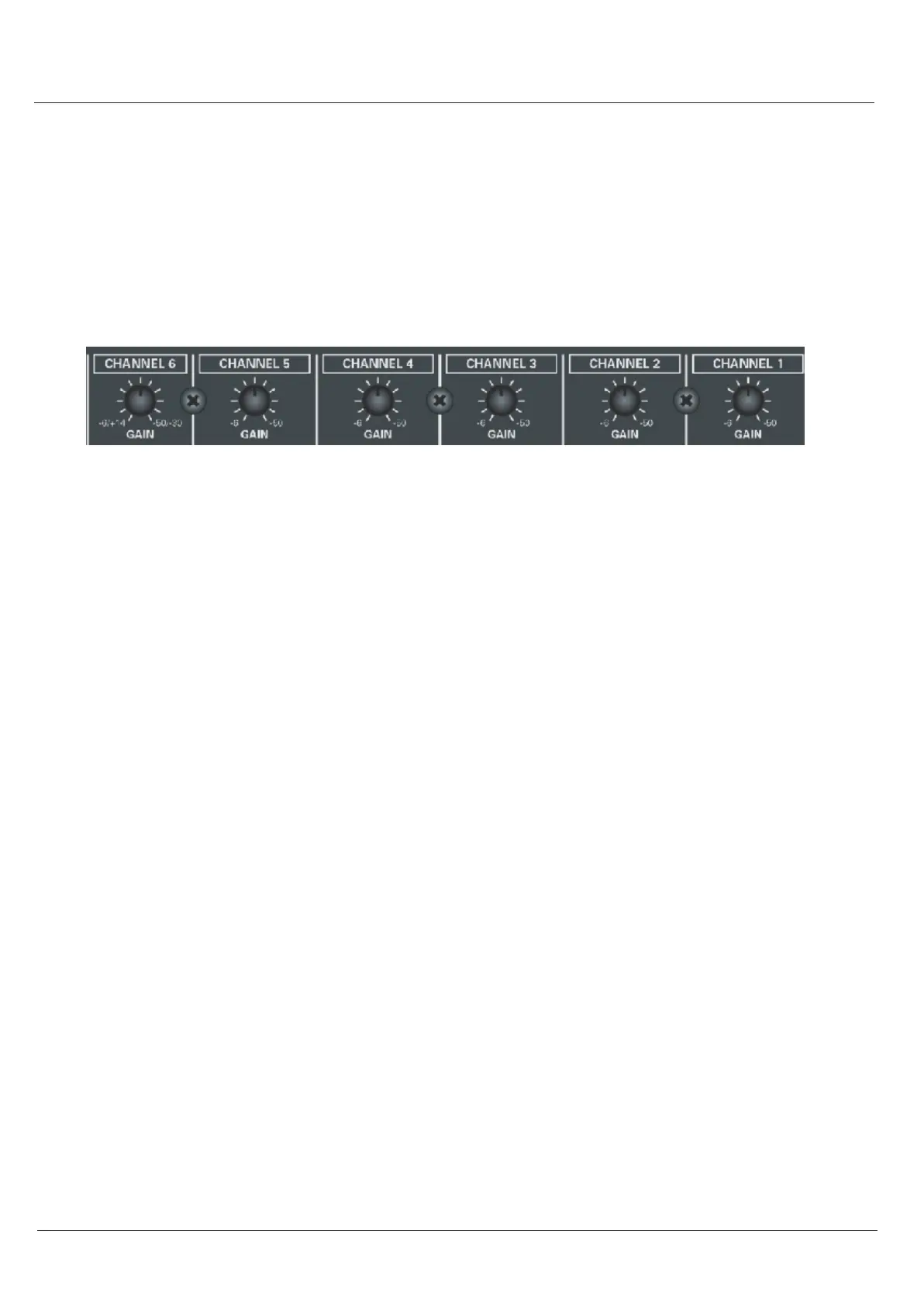

Figure 3.6 shows detail input sensitivities.
[ Acceptable input sensitivity per each channels ]
M series mixer-amplifier has three level priority mute function. When higher level source is acti-
vated,other input signals are muted except same priority level source.
CH3~CH6>CH1~CH2, Chime>Telephone paging.
Priority Control
M-5060/M-5120/M-5240/M-5300
