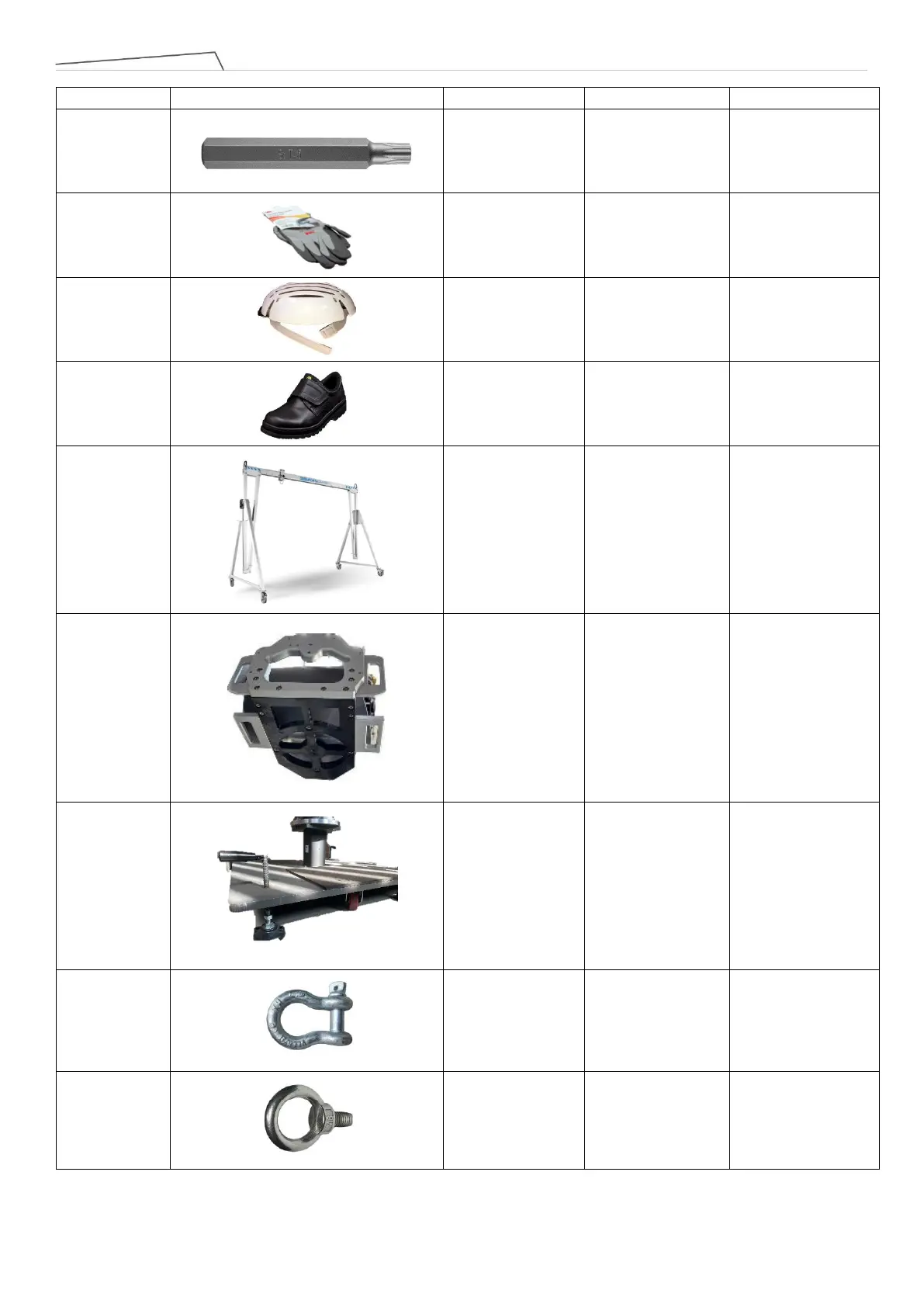

Name
Physical Reference
Specification
Model
Remarks
Magnetic torx
Bit
T45
Used for
installation and
removal A01 Series
Joint
Cut-Resistant
Gloves
Features anti-slip
and cut-resistant
protection
Used to protect
personnel's hands
and provide anti-
slip functionality
Soft Shell Cap
NA
Used to protect
the head of
maintenance
personnel
Steel Toe
Safety Shoes
NA
Used to protect
the feet of
maintenance
personnel
Crane
500-1000kg
length 2.5m
height 3m
PORTA GANTRY
500kg
Used for moving
the robot
lifting jig
Techman Robot
Techman Robot
Used to secure
onto the A01
Series Joint,
facilitating the
crane lifting or
handling of
personnel after
disassembling the
joint
TM25
maintenance
platform
Recommended
Specifications:
Length: 90cm
Width: 90cm
Weight: 100kg
Please refer to the
hardware manual
for the robot base
hole positions and
dimensions. When
assembling, make
sure to secure the
bottom swivel feet
Shacke
weight 2T
width 20mm
Install on the lifting
jig so that the rope
can lift the joint.
Eye bolt
M8 x L15mm
Install on the lifting
jig so that the rope
can lift the joint.
