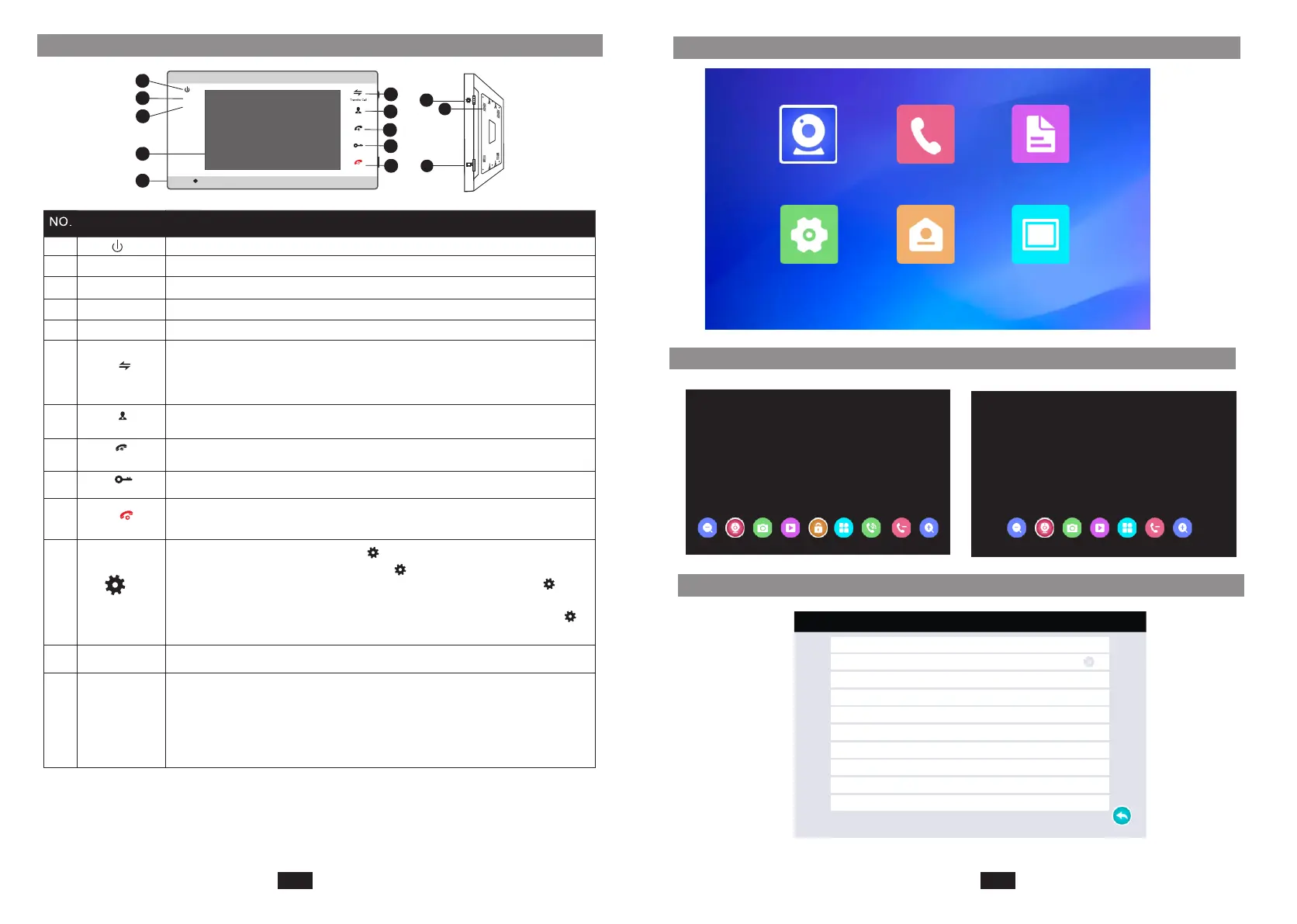

Description On Indoor Monitor
1. In standby mode, press the button “ ” once to access the main menu.
2. On the menu interface, scroll the button “ ” up or down to move the cursor.
3. On menu settings, after choosing sub-menu setting, press the button “ ” to
enter sub-menu interface .
4. When setup menu, press this button to enter edit mode, scroll this button “ ”
up or down to modify parameters, then press this button to confirm.
Speaker
TFT display
View visitor’s image or menu interface displayed on the TFT screen.
Microphone
Sound from outdoor camera.
Transmit the voice to outdoor camera.
Name
Descriptions
1
7
Insert a TF card to store video records, audio records and photographs, supports up
to 256GB. All the recordings and photographs are be stored in the TF card of the
monitor. If the TF card capacity is less than 64GB, the file system format of the
TF card must be Fat32. If the TF capacity is greater than or equal to 64GB, the file
system format must be exFat. And it is recommended to use a TF card with a writing
speed greater than Class 10 on the device.
TF card slot
8
1. Monitor, watch the door and camera images.
2. In file list interface, press this button to page up.
13
Unlock, release the door lock.
12
11
Note:
The back-light of each button will be on when user presses any button or some visitor
calls on the outdoor bell. If the indoor monitor is in standby mode, all button’s back-lights
will be off in 10 seconds.
2
3
4
5
6
9
10
1
2
3
5
4
9
11
11
13
TF
12
6
7
Monitoring
Unlock
Talk
Hang up
1
2
8
10
The door 1 state lights, to door 1 working when the LED is on.
1
2
The door 2 state lights, to door 2 working when the LED is on.
Transfer call
Power LED, the power indicator of the indoor monitor.
1. Transfer call, during conversation mode press this button to transfer calls to
another indoor monitor.
2. Internal communication, in standby mode, press the button to activate internal
communication with the other indoor monitor.
Monitoring
Talk
1. Talk, press this button to activate conversation mode.
2. In file list interface, press this button to page down.
Unlock
Hang up
1. Hang up, during conversation press this button to end conversation mode.
2. Return, on menu interface press this button to return to the previous.
Set System Parameters On Indoor Monitor
Monitoring Transfer Recording
Setting At home Photo frame
Outdoor bell and Camera monitoring
Door1 AHD1080P SD
DOOR1 2021/05/17 17:00:02
Camera1 AHD720P SD
CAM1 2021/05/17 17:00:12
System setting
System setting
Device_id
Time
Date format
Standby clock
Language
Keytone
Weather
Key backlight
Door panel backlight
Standby display
On
On
On
On
On
1
2021-05-18 06:45
YY-MM-DD
On
English
GB- 5 GB- 6
