UNPACKING & ASSEMBLY

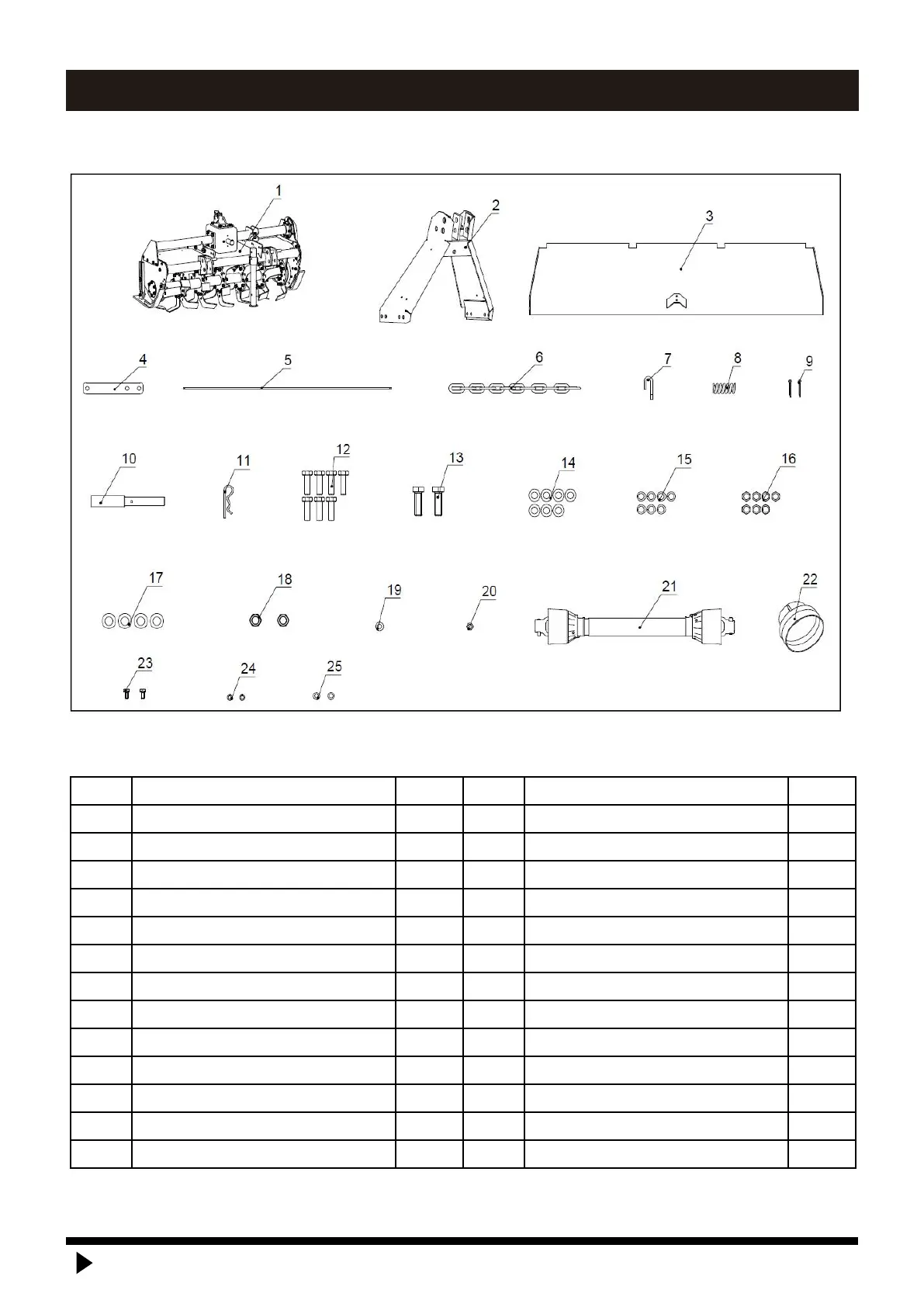

1. After unpacking, check the following components
* All numbers are not part numbers in the drawings. For correct p a r t numbers, see explosive
d i a g r a m
No.
Description
Qty
No.
Description
Qty
1
Host
1
14
M14 Flat Washer
7
2
Hanging Welds
1
15
M14 Spring Washer
7
3
Tailgate Welds
1
16
M14 Ordinary Nut
7
4
Pull Plate
1
17
M18 Flat Washer
4
5
Tailgate Shaft
1
18
M18 Lock Nut
2
6
Galvanized Chain
1
19
M10 Flat Washer
1
7
Spring Hook
1
20
M10 Lock Nut
1
8
Compression Spring
1
21
PTO drive Shaft
1
9
Cotter Pin
2
22
PTO dust Cover
1
10
Upper Hanging Pin
1
23
M8*16 Hexagon Bolts
2
11
R Pin
1
24
M8 Spring Washer
2
12
M14*45 Hexagon Bolts
7
25
M8 Flat Washer
2
13
M18*55 Hexagon Bolts
2
