CONNECTING TRACTOR
1. Three-point linkage
2. Connection and adjustment
⚠ Caution ! Make sure the tractor is fixed in the process of connection
a. Start the tractor engine, tractor and machine head lower link under suspension corresponds to the
position of the pin, rewind, stop, stop the engine, put up parking stalls.
b. Connect Left towing arm, the left arm on the tractor towing the working machine is left hanging inserted
pin, the locking detent. Right arm pulling the same way.

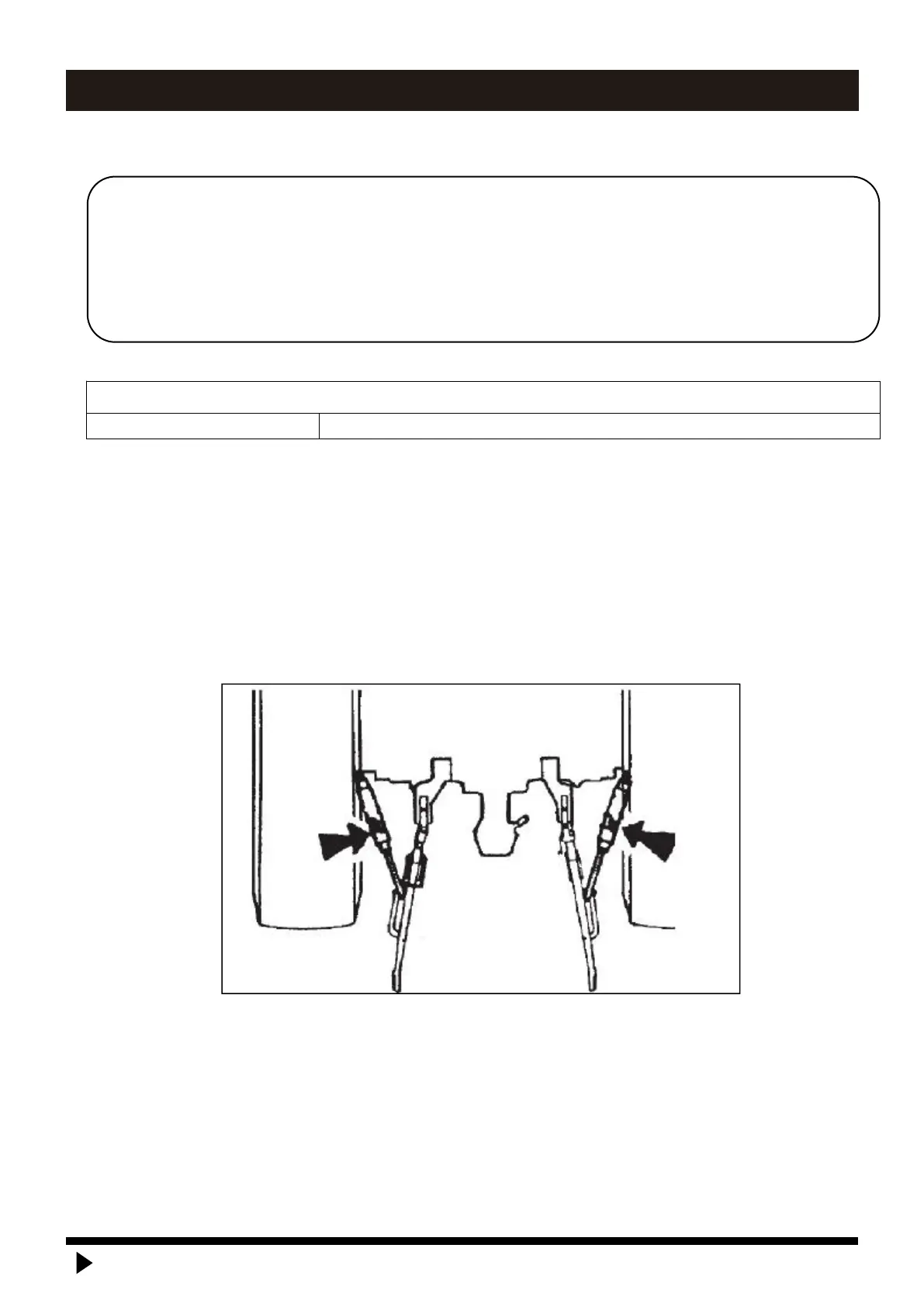

c. Adjust the towing arms in the same height, as shown below:
If the magnitude of the tractor towing arms is too narrow, adjust the left suspension pin inward as below:
⚠ Warning !
In the process of connection, when the tractor is the moving, if there is people between the
tractor and working machine, it may cause injury accident. Be sure no people stand
between the tractor and working machine during the tractor moving.
