www.tmgindustrial.com 15/35 Toll Free:1-877-761-2819

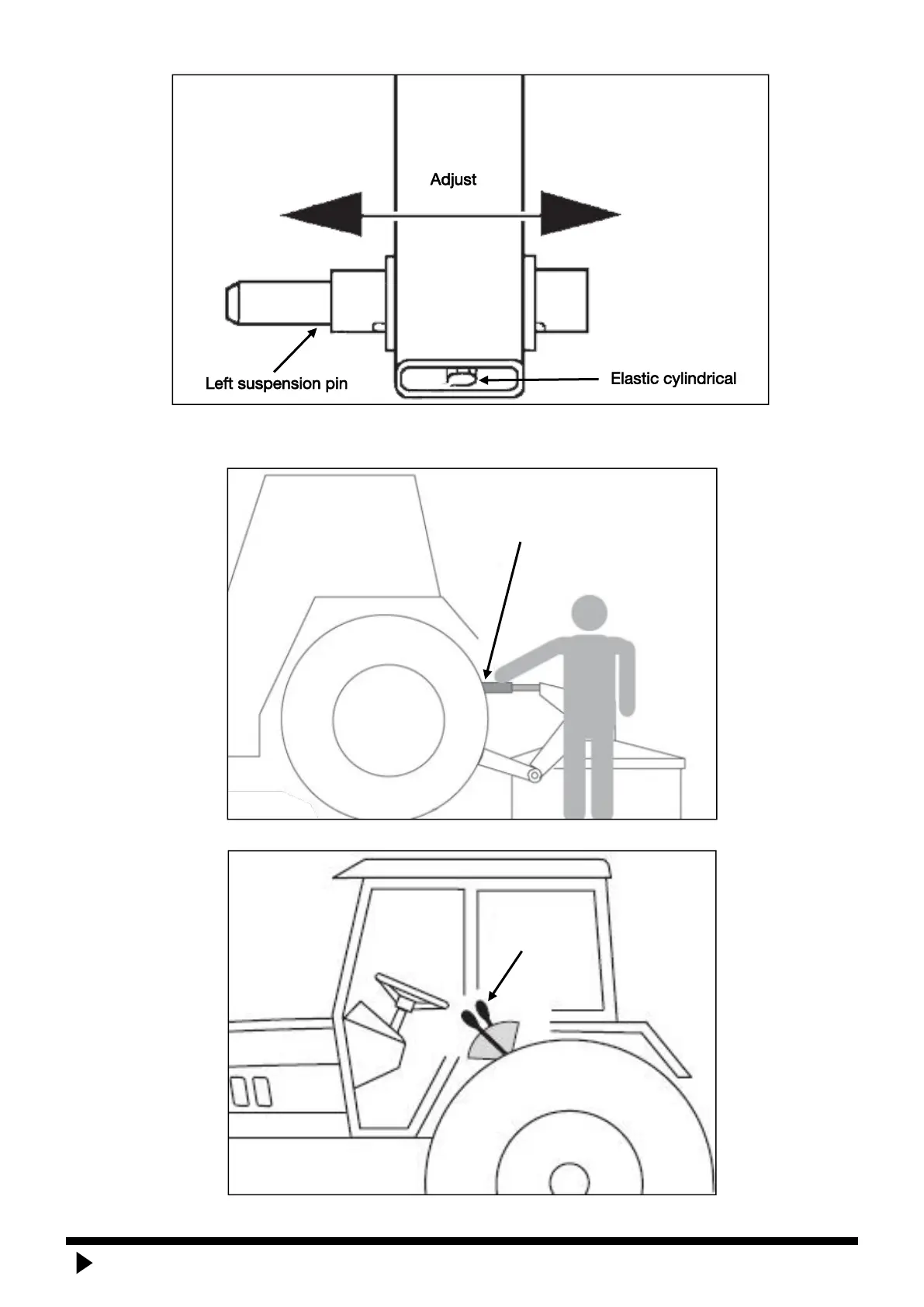

d. Adjust angle, to obtain the most appropriate cutting angle, adjust the upon 3-point linkage suspension to
ensure the suitable cutting angle.
Upon 3-point linkage
Handle for tractor
3-point linkage
Adjust
Left suspension pin
Elastic cylindrical
