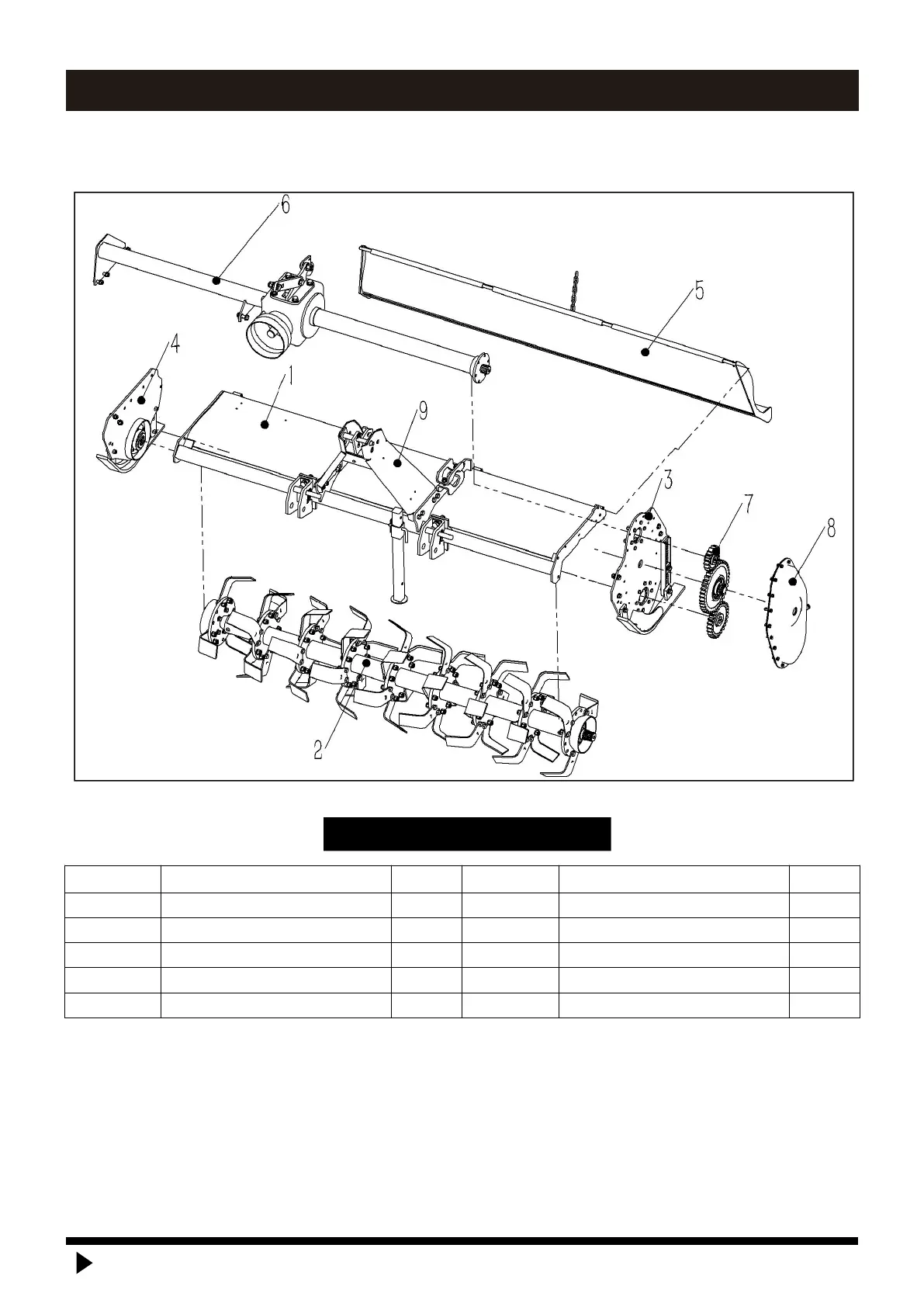

EXPLODED VIEW & PARTS LIST
1. Main-frame assembly
Ref.No.
Description
Qty
Ref.No.
Description
Qty
1
Hood assembly
1
6
Gearbox assembly
1
2
Blade axle assembly
1
7
Side drive assembly
1
3
Left panel assembly
1
8
Gearbox housing assembly
1
4
Right panel assembly
1
9
Suspension assembly
1
5
Baffles
1
PARTS LIST
