3. After connection, fixed the chain to prevent the plastic cover rotation

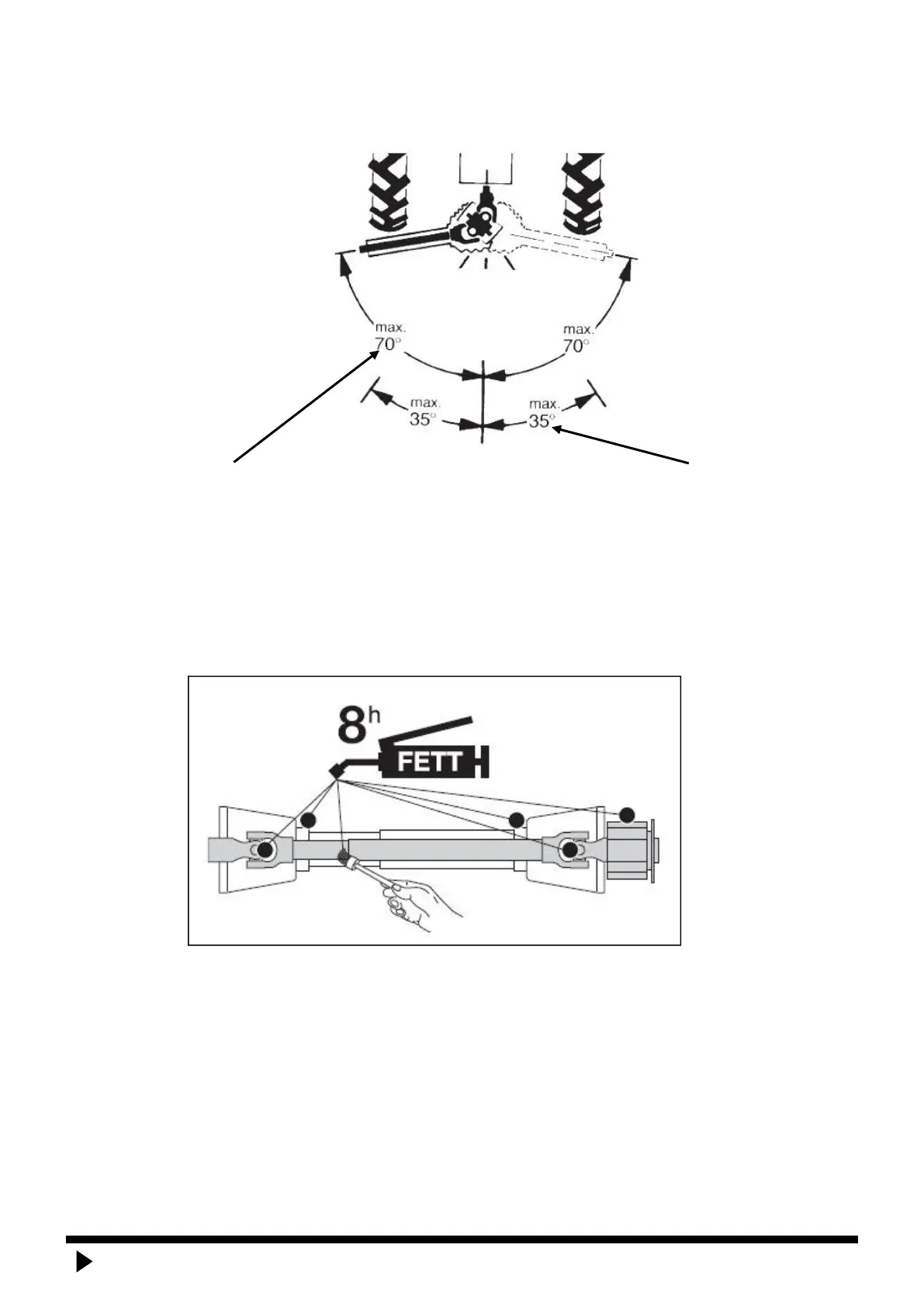

4. Max rotation angle of coupling
⚠ Noted !
If the shaft beyond its maximum operating angle of rotation at work, there will be unexpected
injury accident. Be sure to fix the tractor three-point suspension before use.
4. Coupling lubrication and maintenance
Proper grease lubrication and maintenance will greatly enhance the transmission efficiency of the
tractor.
After eight hours of continuous operation coupling, check above the pointed position
should be oiling and lubrication.
Max rotation angle in installation
Max rotation angle in working
