TMG TMG-RT83 - Page 35

PARTS LIST
www.tmgindustrial.com 35/35 Toll Free:1-877-761-2819
Ref.No.
Description
Qty
Ref.No.
Description
Qty
H1
Sheet gasket
1
H6
Plain washer Ø8
18
H2
Gearbox cover
1
H7
Full-thread hexagon bolts
M8x35
2
H3
Hexagon nuts M8
18
H8
Outer hexagon plug M16x1.5
1
H4
Full-thread hexagon bolts
M8x25
16
H9
Combined sealing gaskets
16.4x22x2.5
2
H5
Spring washer Ø8
18
H10
Grease nipple M16x1.5
1

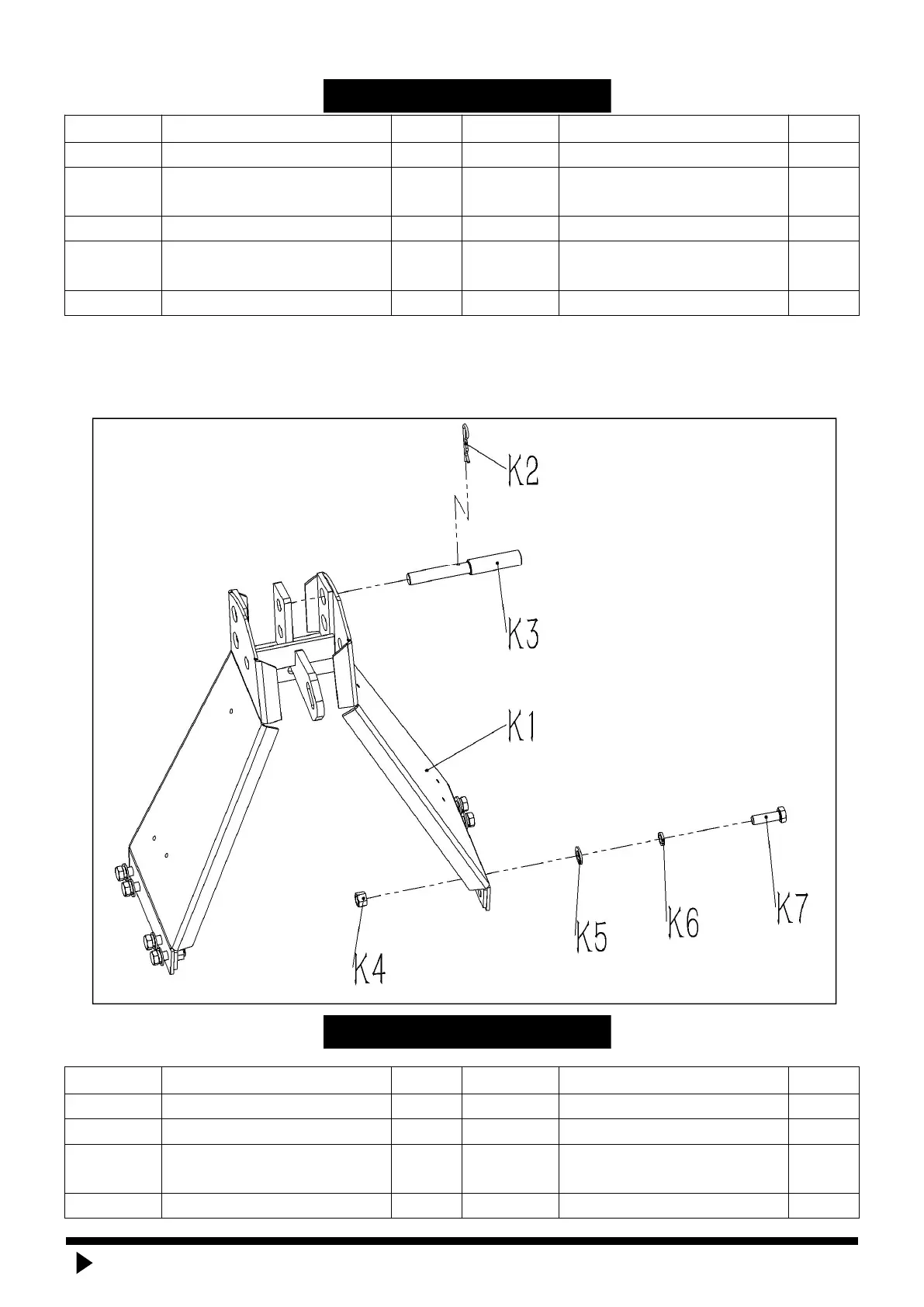

10. Side gearbox housing assembly
Ref.No.
Description
Qty
Ref.No.
Description
Qty
K1
Hitch bracket
1
K5
Plain washer Ø14
7
K2
R pin 4
1
K6
Spring washer Ø14
7
K3
Hitch pin-upper
1
K7
Full-thread hexagon bolts
M14x45
7
K4
Hexagon nuts M14
7
PARTS LIST
