USER MANUAL SAGA
Page 14 of 47

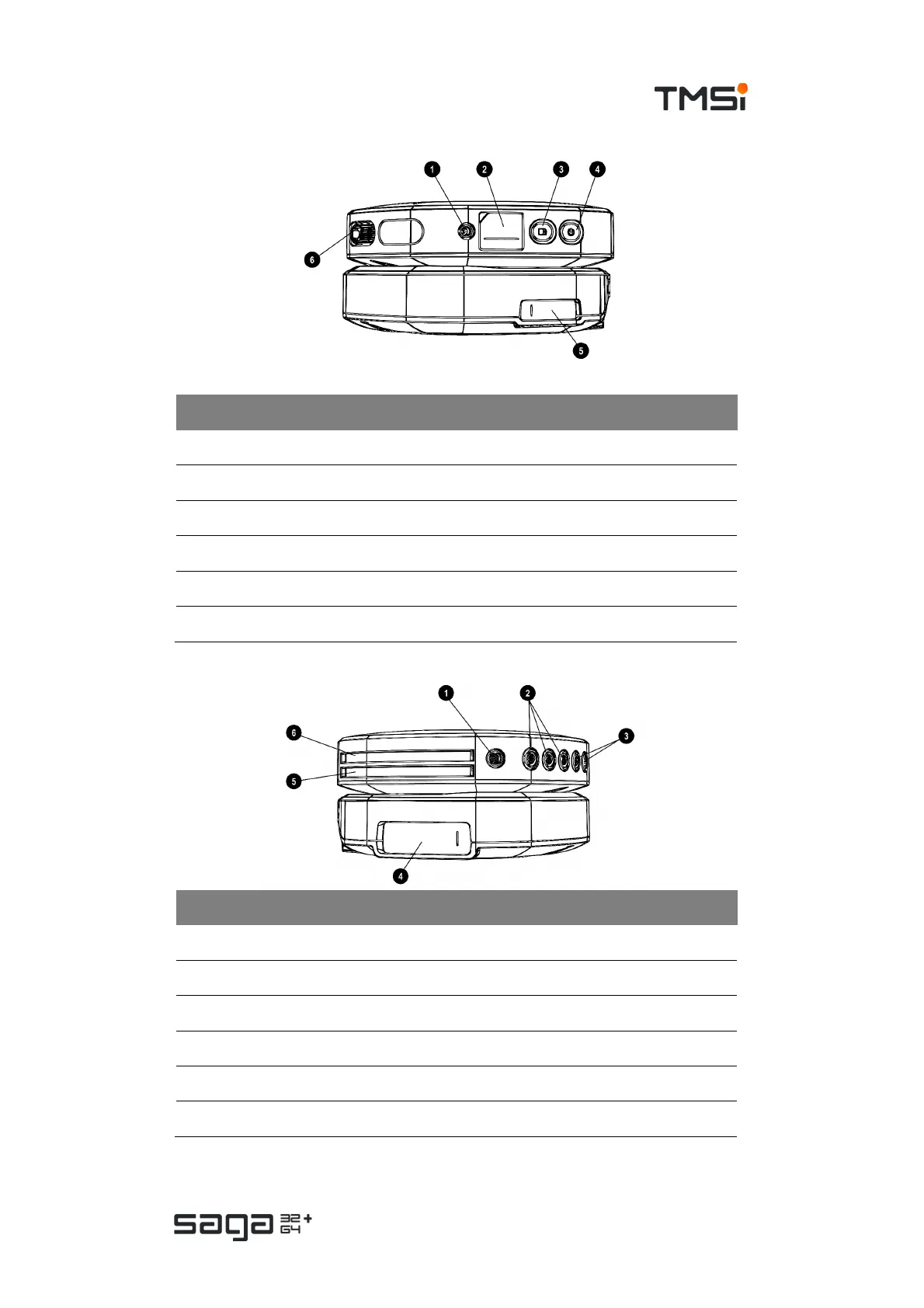

Side views
# Part Description
1. Data Recorder SYNC OUT connector
2. Data Recorder Fiber cover
3. Data Recorder Recording button
4. Data Recorder ON/OFF button
5. Docking Station Fiber cover
6. Data Recorder UNI 1-32 multi-connector
# Part Description
1. Data Recorder Digital input connector (DIGI)
2. Data Recorder Auxiliary input (AUX 1-3) connectors
3. Data Recorder Bipolar input (BIP 1-2 and BIP 3-4) connectors
4. Docking Station Trigger connector (behind cover)
5. Data Recorder Compartment for battery 2
6. Data Recorder Compartment for battery 1
