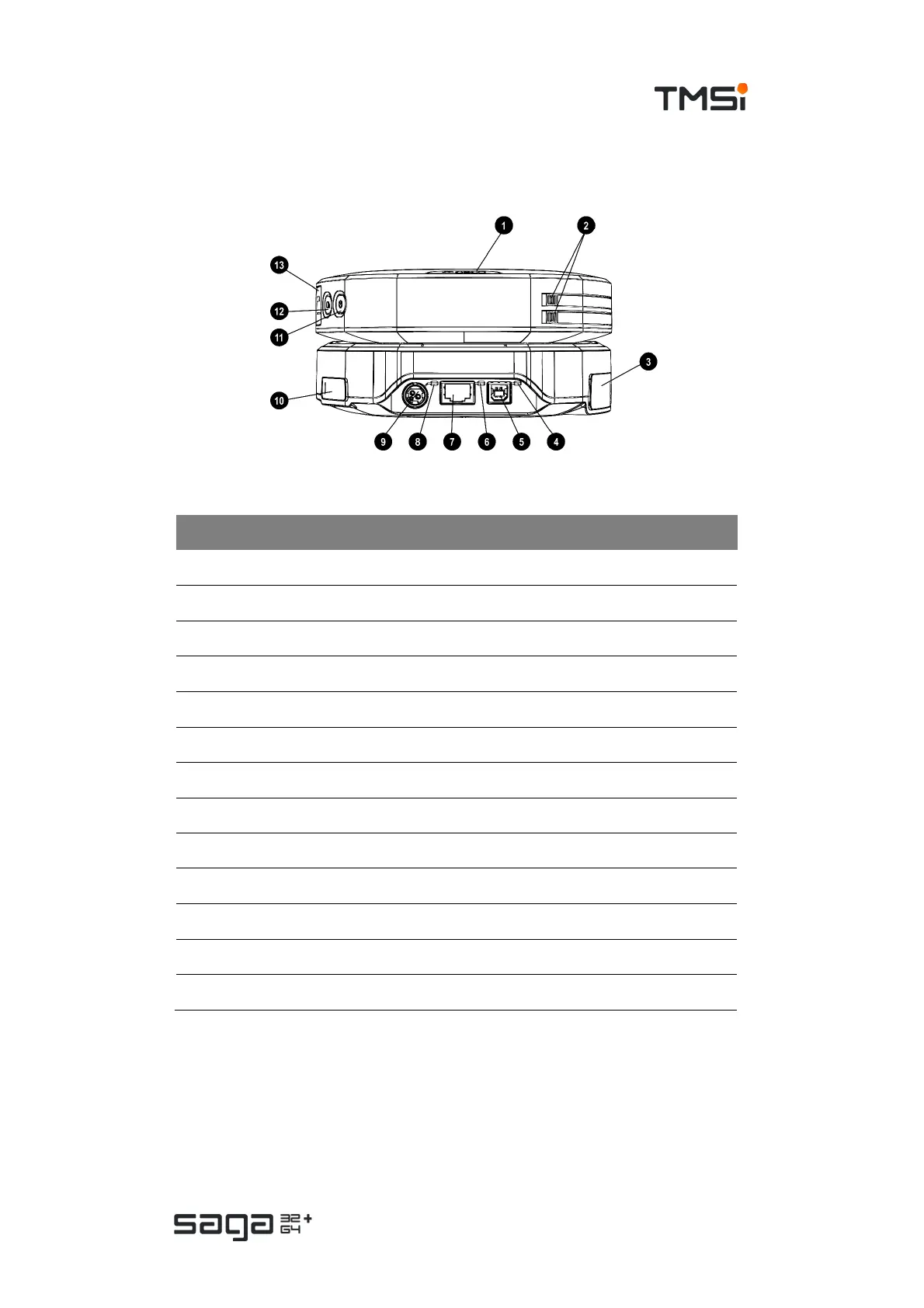

Back view

# Part Description

1. Data Recorder Event marker button

2. Data Recorder Release buttons for battery compartments

3. Docking Station Trigger connector (behind cover)

4. Docking Station USB status indicator

5. Docking Station USB connector

6. Docking Station Ethernet status indicator

7. Docking Station Ethernet connector

8. Docking Station Power status indicator

9. Docking Station Power connector

10. Docking Station Fiber connector (behind cover)

11. Data Recorder ON/OFF button

12. Data Recorder Recording button

13. Data Recorder Fiber connector (behind cover)
