Toa DA-250D - Page 5

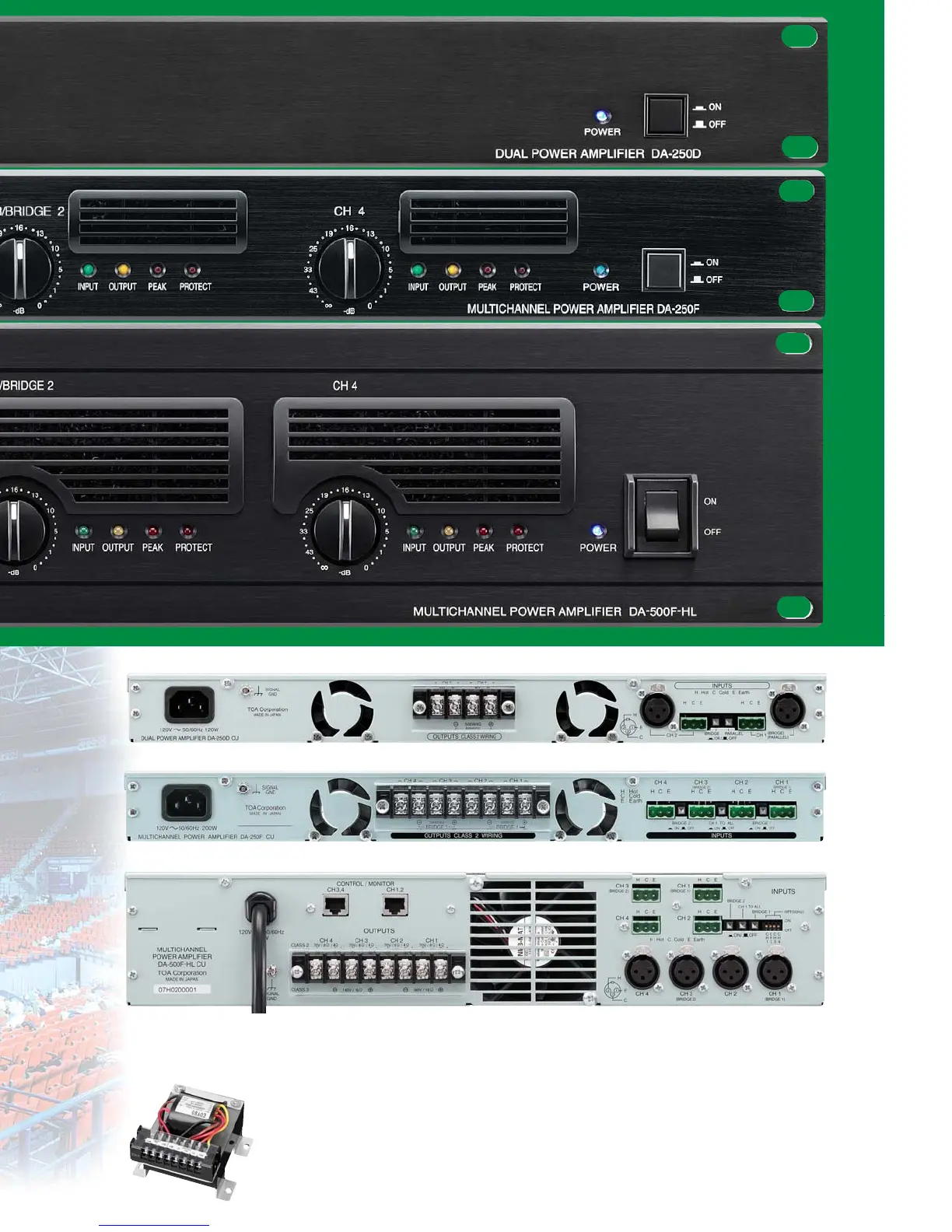

MT-251H
Matching Transformer (option)
DA-250D (rear)
DA-250F (rear)
DA-500F-HL (rear)
Capacity: 0 – 250W
Primary impedance: 100V line: 40Ω (250W), 70V line: 19.6Ω (250W)
Secondary impedance: 100V line: 40Ω (250W), 70V line: 19.6Ω (250W), 50V line: 10Ω (250W),
35V line: 4.9Ω (250W)
Frequency Response: 30 – 18,000Hz (+0dB, –3dB)
Connection Terminal: M3 screw terminal, distance between barriers: 6.6mm
Dimensions: 108(W) × 80(D) × 122(H) mm (4.25" × 3.15" × 4.8")
Weight: 2.4kg (5.29 lb)
