GENERAL PURPOSE BROADCAST EXPANSION FUNCTIONS
Operation Using Both Standby and
Quasi-Dual-Origination Amplifiers
4-5-9
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
VM-2240
SV-200M
BGM Player
ZONE-1
ZONE-2
ZONE-3
ZONE-4
ZONE-5
Speaker out
VP-1120/1240
YA-1000A
Customized
Relay Circuit

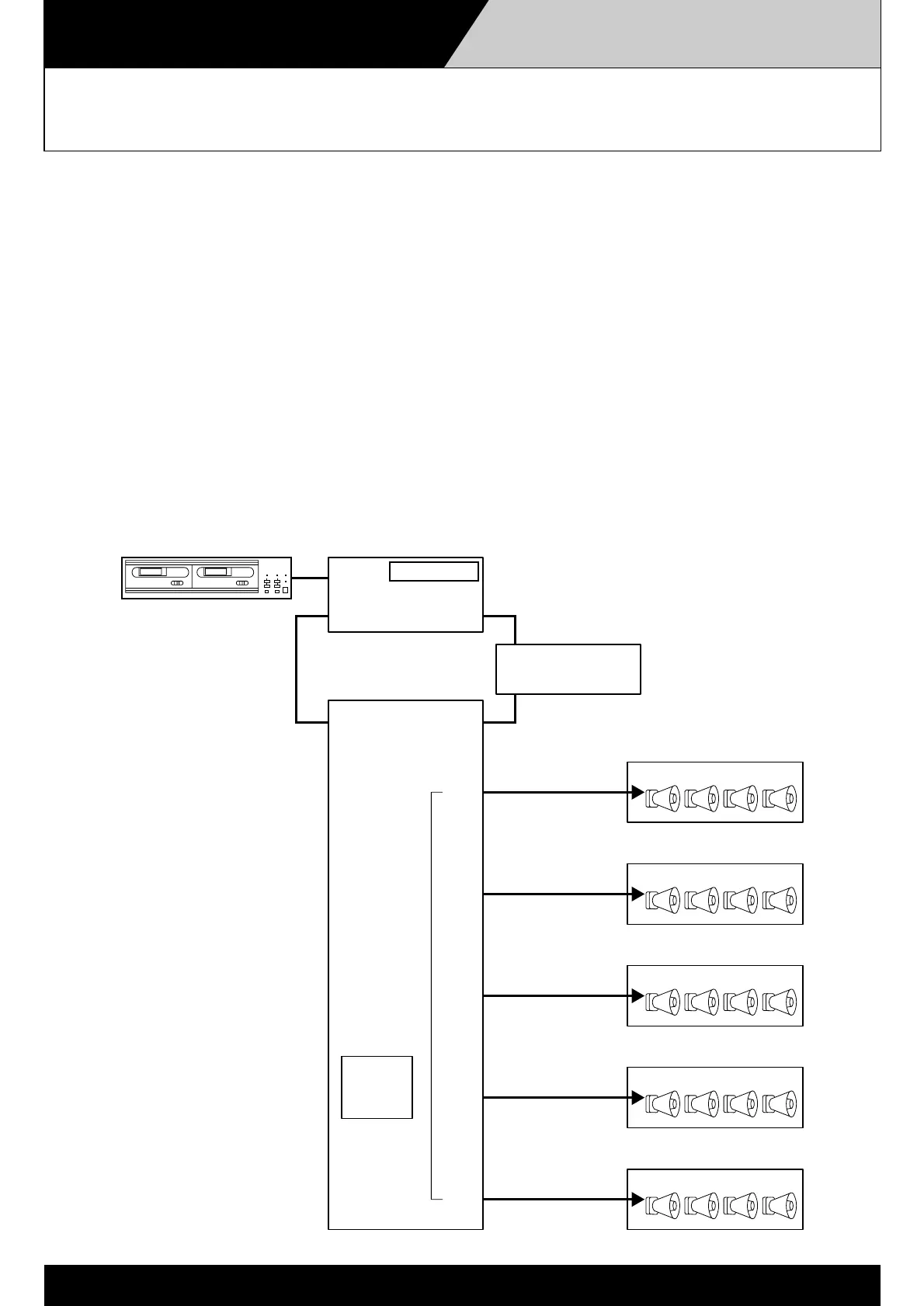

The following system enables the same amplifier to provide both standby and quasi-dual-origination
broadcast functions.
Quasi-dual-origination broadcasts are normally made using both the VP-1120 or VP-1240 amplifier and the
VM Series amplifier. If the VM amplifier fails, the VP amplifier functions as the VM amplifier's backup
amplifier. Details concerning the operation of the quasi-dual-origination broadcast system are explained in
the Quasi-Dual-Origination Broadcast Operation section. (4-5-5)
