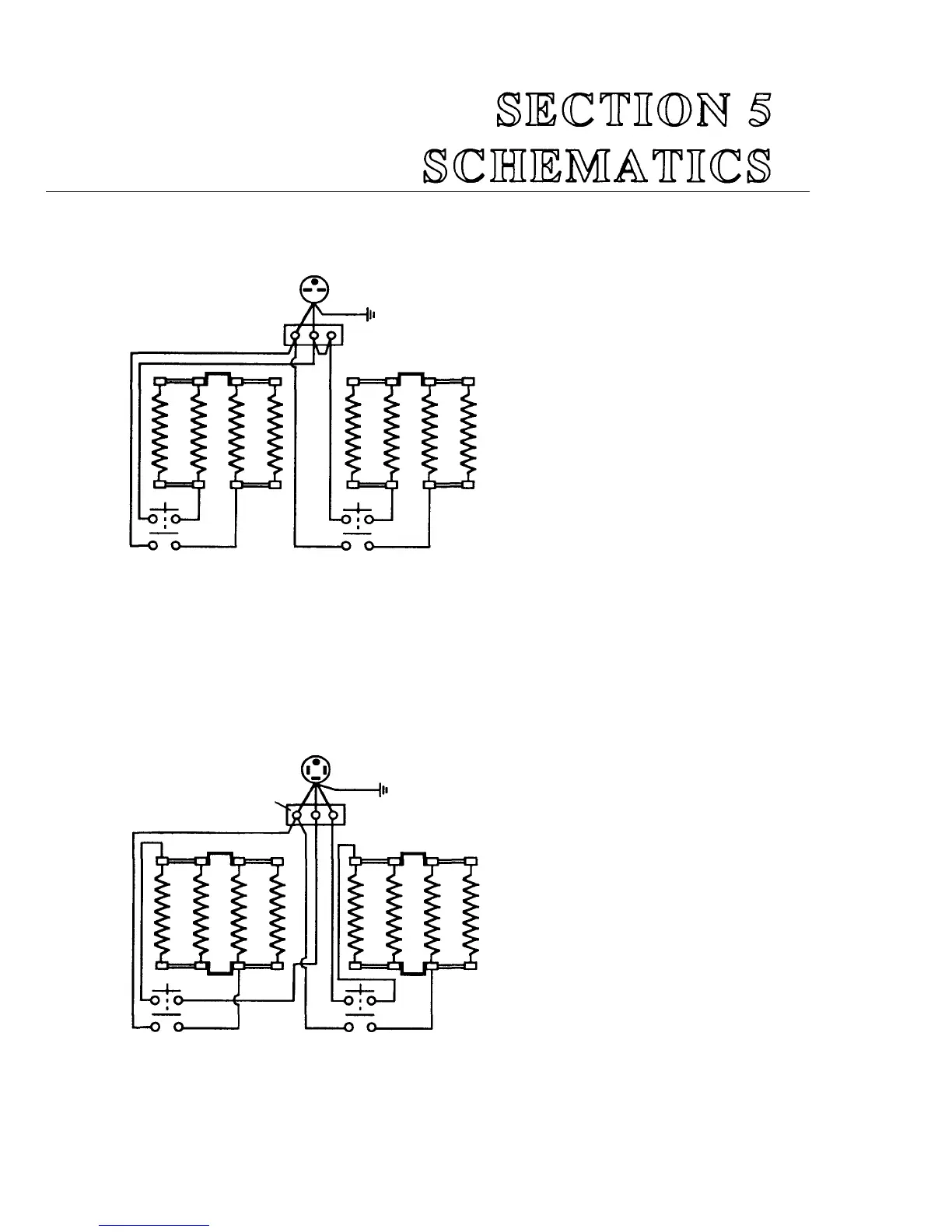

Toastmaster 1D3 - Electrical Schematic; Section 5; Model 1 D3 Schematic

Current
208V and 240V
2 Pole, 3 Wire
Heat Switch Heat Switch
Non-Current 1
20/208V, 115/230V and 120/240V
3 Pole, 4 Wire
Heat Switch Heat Switch
Model 1D3 Schematics
21
Cord w/NEMA
6
-
1
5P Plug used with
6
-
15R Receptacle, #16-3 AWG at least
90°C (194°F)
Heating
Elements
Cord w/NEMA 14
-
20P Plug used
with 14-20R Receptacle, #14-4
AWG at least 90°C (194°F)
Neutral
.
Heating
Elements
