Toastmaster 1D3 - Model 1 BB5 Schematic

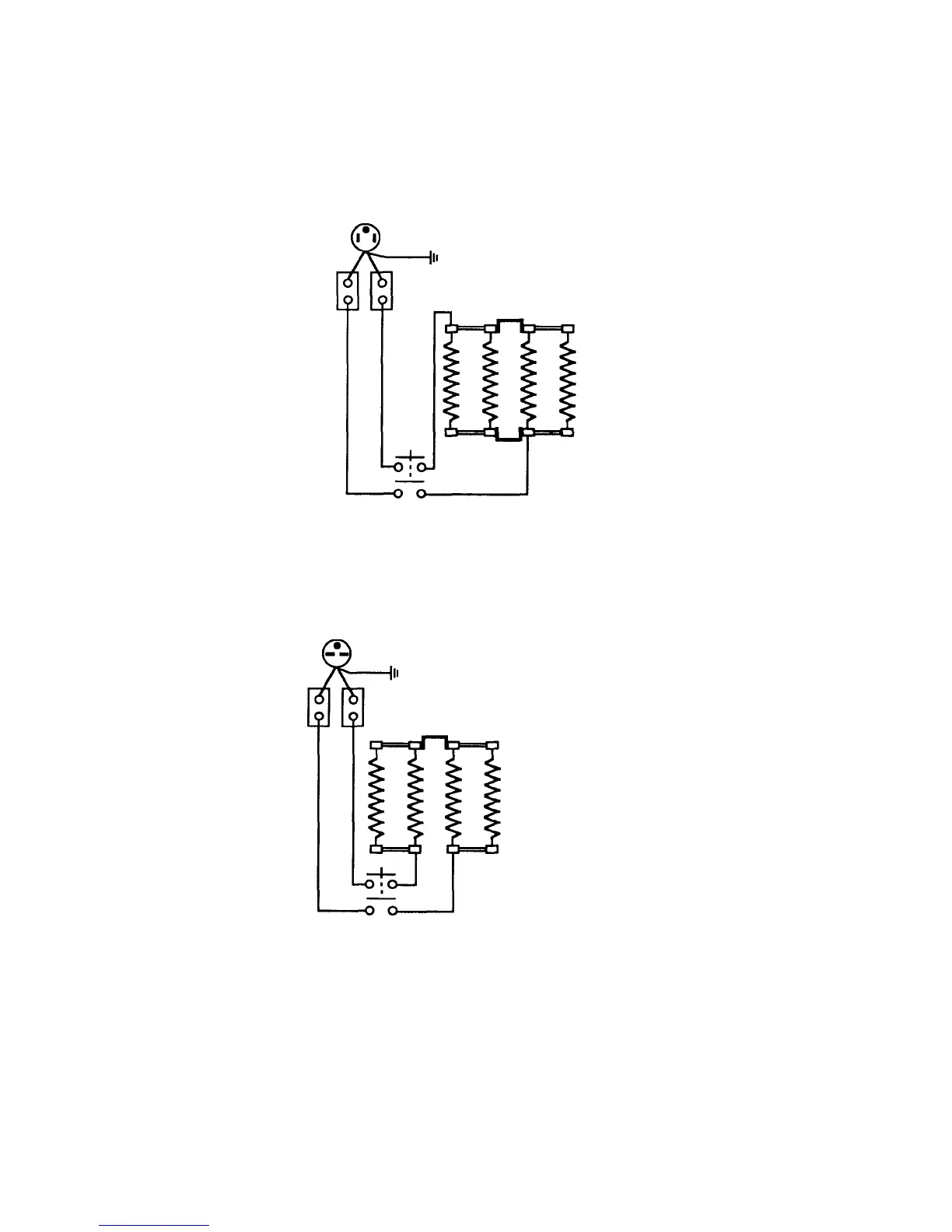

SECTION 5 - SCHEMATICS
Current
120V
2 Pole, 3 Wire
Heat Switch
Non-Current
208V and 240V
2 Pole, 3 Wire
Cord w/NEMA 6-15P Plug used
with 6-15R Receptacle, #16-3
AWG at least 90°C (194°F)
Heating
Elements
Heat Switch
Model 1BB5 Schematics
Cord w/NEMA
5
-
1
5P Plug used
with 5-15R Receptacle, #16-3
AWG at least 90°C (194°F)
Heating
Elements
