TOHATSU MFS 15 Service Manual

9
4st 9.9/15/20 2009

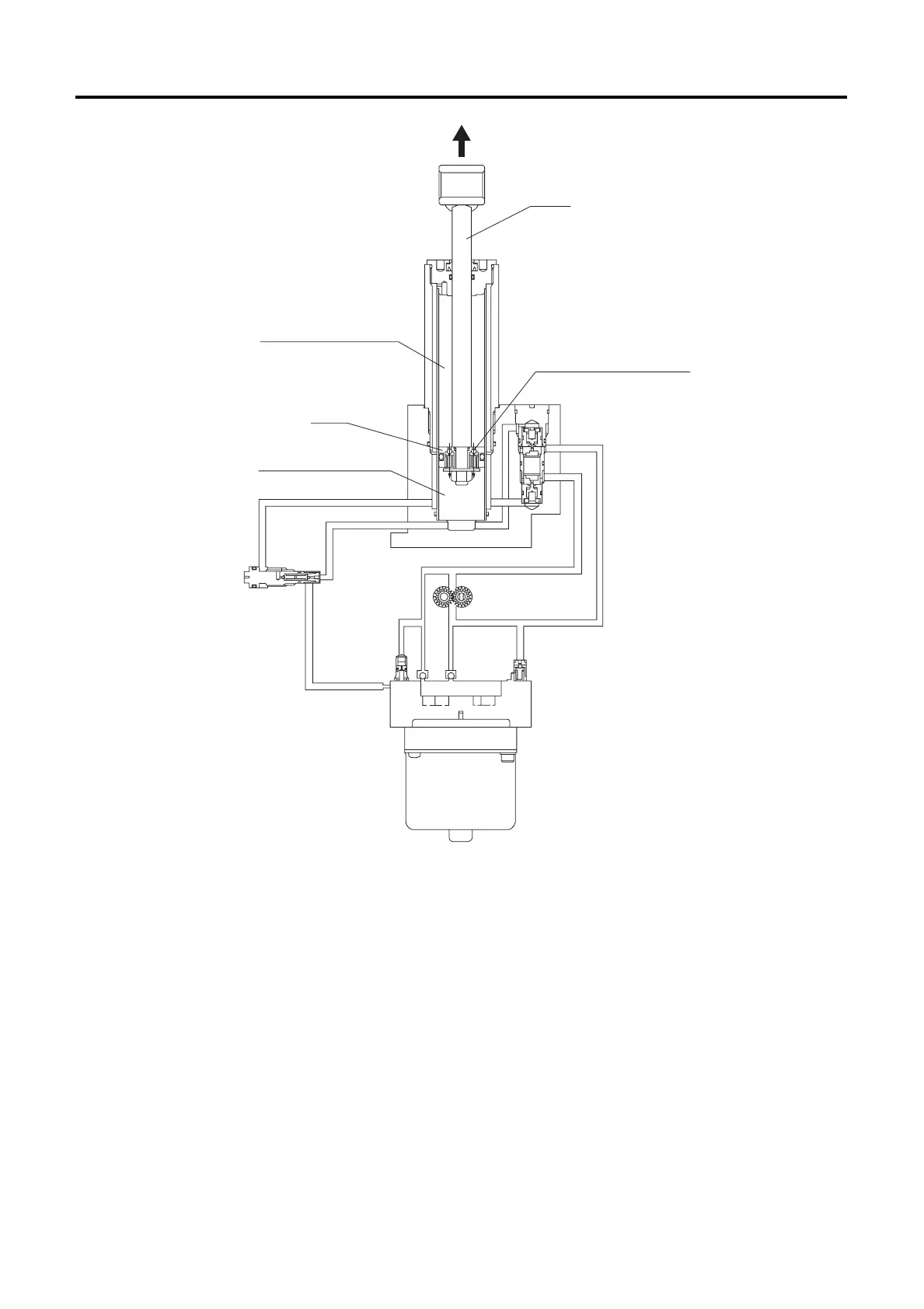

Tilt rod
Cylinder upper chamber
(Open to 129〜169kgf/cm
2
12.6〜16.6Mpa
〔1835〜2404psi〕)
Shock absorber valve
Piston
Cylinder lower chamber
Shock Absorber Valve
The PTT unit is provided with a shock absorber that protects the drive unit from an impact in case it hits underwater obstacle
during cruising.
In case drive unit hits an underwater obstacle, the hydraulic pressure in the cylinder upper chamber is increased suddenly.
The high pressure opens shock valve of piston.
When shock valve opens, oil in the cylinder upper chamber flows into the lower cylinder chamber to extend tilt rod upward to
absorb the shock.
E_MFS15-20C_sup_body_090330.qxd 09.4.2 11:10 AM ページ 9

TOHATSU MFS 15 Specifications

General

Brand	TOHATSU
Model	MFS 15
Category	Outboard Motor
Language	English
