PTT Unit
4st 9.9/15/20 2009

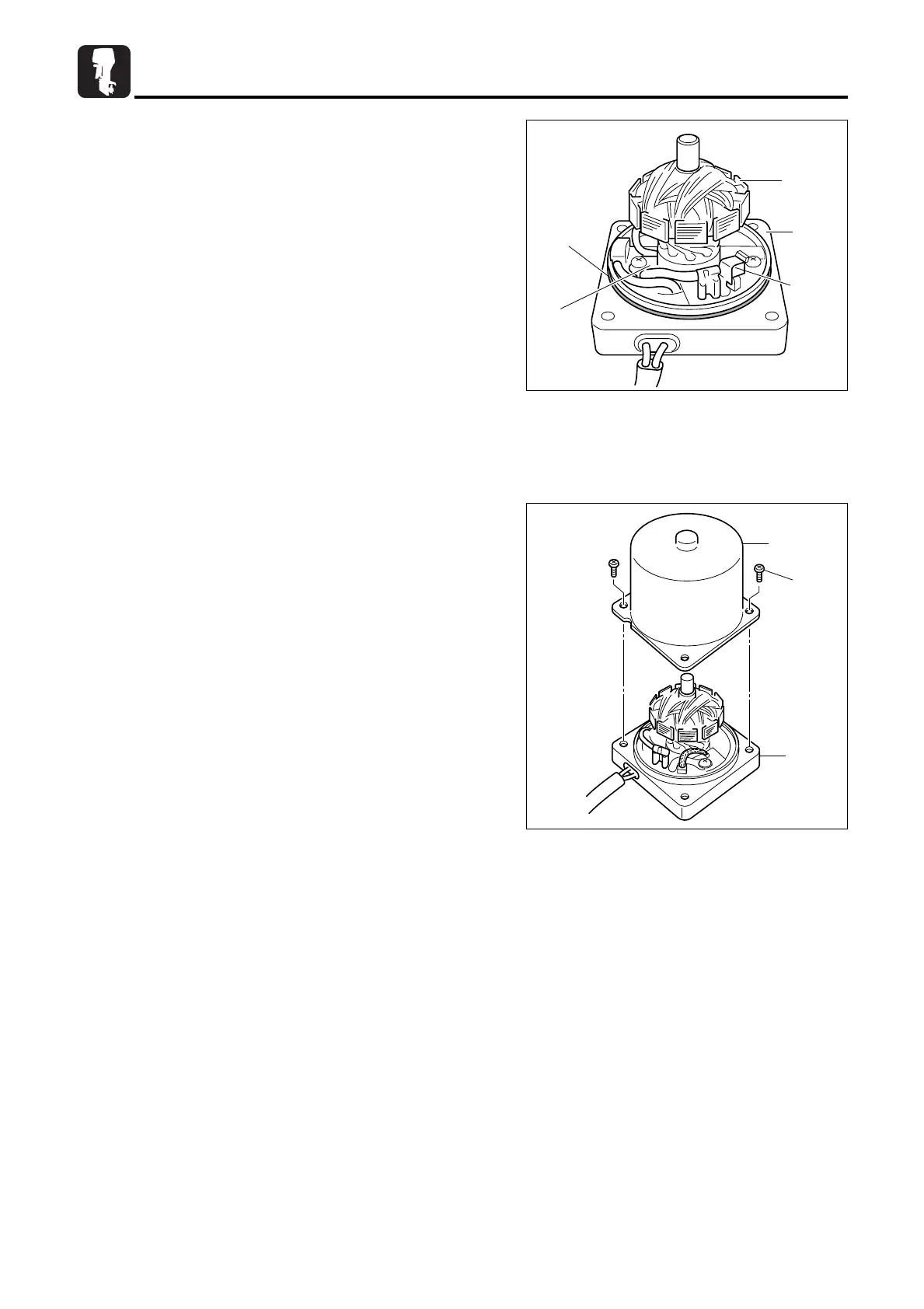

9. Attach armature 1 while holding brush 3 located in the
groove during installation of armature 1 to motor bracket
2.
10. Attach O ring 5 to motor bracket 2.
5
4
1
2
3
1Armature
2Motor bracket
3Brush
4Brush
5O ring
11. Attach yoke ass'y 1 by using 2 screws 2.
1
3
2
1Yoke ass'y
2Screw (2)
3Motor bracket
