14
PTT Unit
4st 9.9/15/20 2009
7.Power Tilt Motor
1）

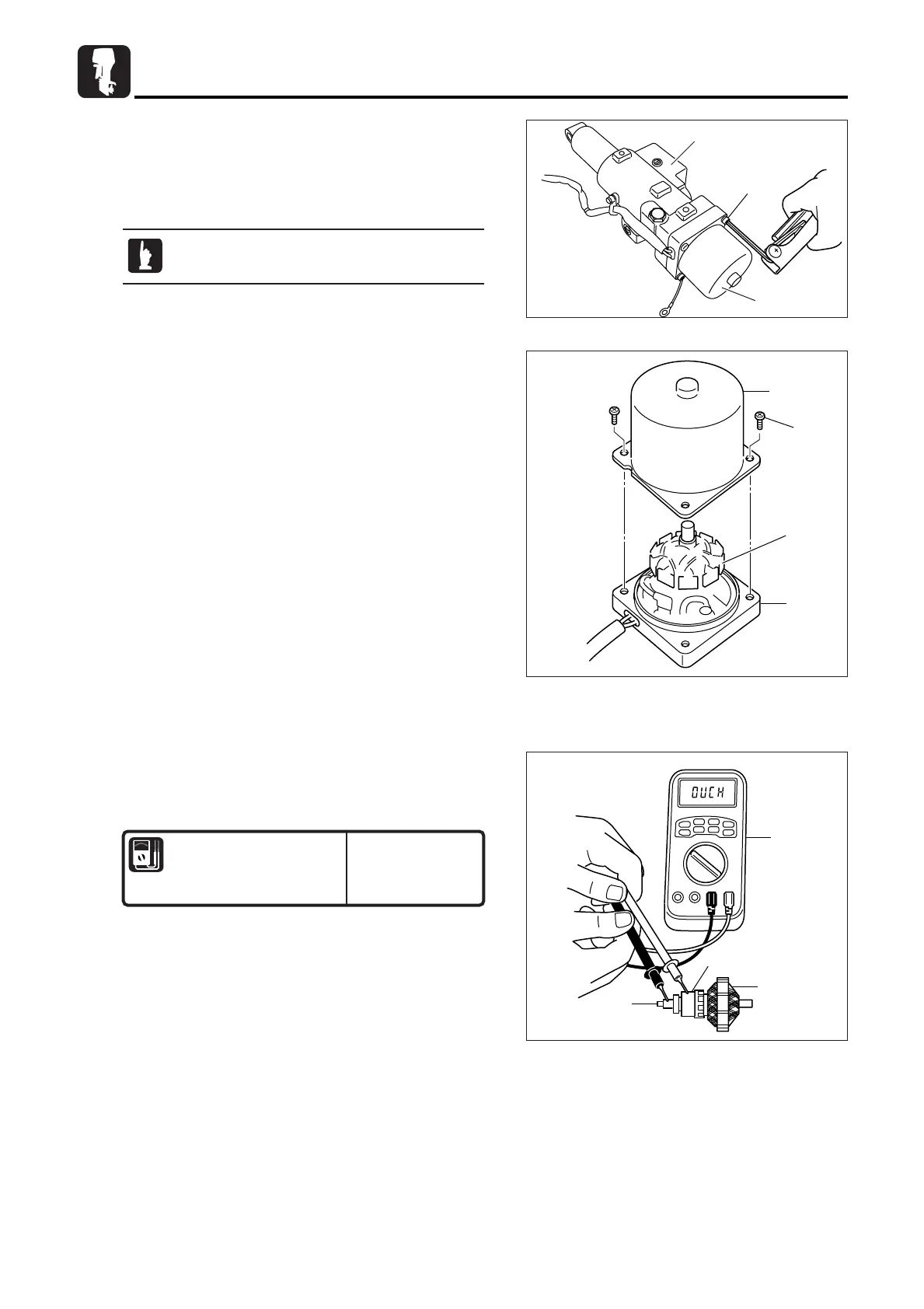

Removal, Check and Repair of Power Tilt Motor
1. Remove 2 inner hex bolts 1, and then remove motor ass'y
2 from power tilt pump and cylinder ass'y 3.
4
7
6
5
Before disassembling power tilt motor, drain power
tilt fluid. <Refer to section 6.>
2. Remove 2 screws 5, and then remove yoke ass'y 4 from
motor bracket ass'y 6.
3. Remove armature ass'y 7 from yoke ass'y 4.
1Yoke ass'y
2Screw
3Motor bracket
4Armature ass'y
2）Continuity Test
1. Check electrical conductivity of armature 2. Replace
armature ass'y if other than specification.
To Next Page
