ENGINE OPERATION54
7
z For outboard motor model with PT or PTT
switch on the bottom cowl, do not oper-
ate the switch during while cruising, or
control of boat may be lost.

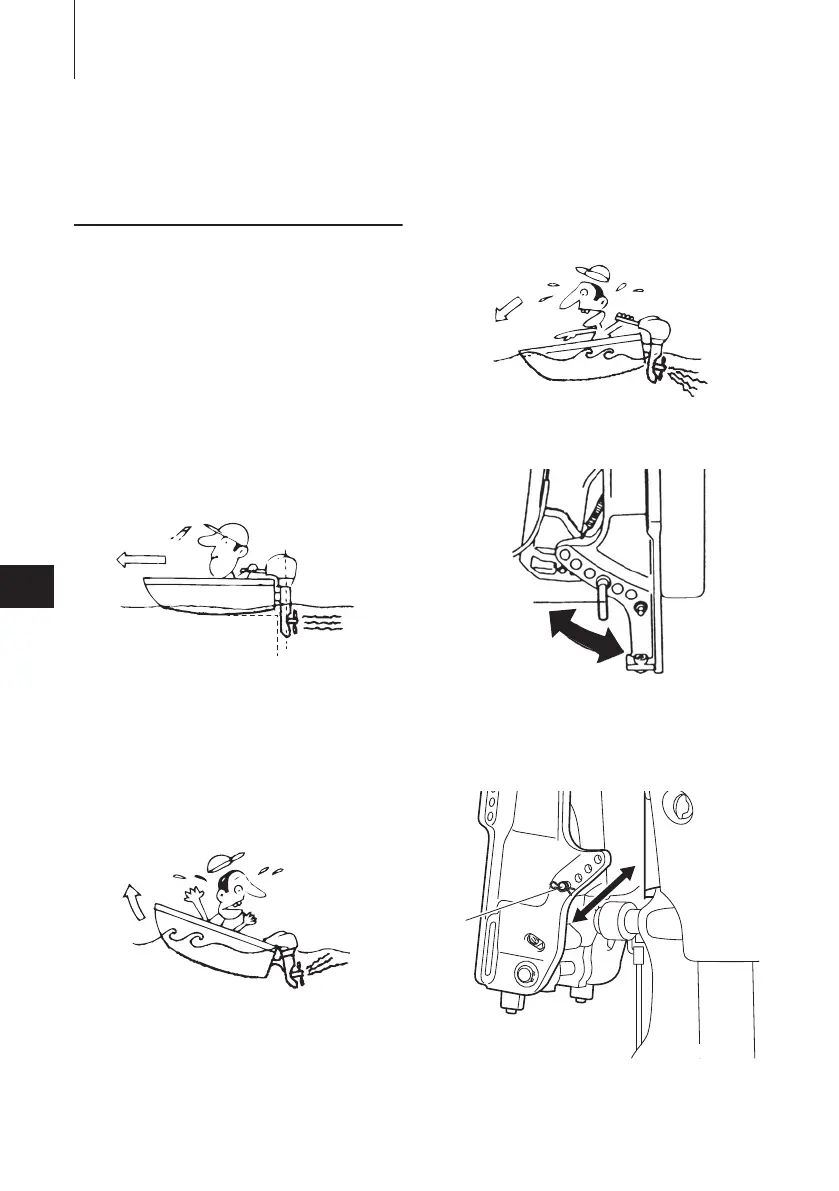

The trim angle of the outboard motor can
be adjusted to suit the transom angle of
the hull, and load conditions. Choose an
appropriate trim angle that will allow the
anti-ventilation plate to run parallel to
the water surface during operation.
ENOM00052-0
Proper trim angle
The position of the thrust rod is correct if
the hull is horizontal during operation.
1. Perpendicular to the water surface
ENOM00053-0
Improper trim angle (bow rises too
high)
Set the thrust rod lower if the bow of the
boat rises above horizontal.
ENOM00054-0
Improper trim angle (bow dips into the
water)
Set the thrust rod higher if the bow of
the boat is below horizontal.
Manual Tilt type
1. Thrust rod
2. Higher
3. Lower
Power Tilt type
1. Thrust rod
2. Higher
3. Lower
1
ENOF00051-1
ENOF00052-0
ENOF00053-0
