ENGINE OPERATION56
7
ENOW00056-A
When tilting up outboard motor with fuel
joint for over a few minutes, be sure to dis-
connect fuel hose, or fuel may leak, poten-
tially catching fire.
ENOW00057-1
Do not tilt up the outboard motor while
engine is operating, or no cooling water may
be discharged, leading to engine seizure due
to overheating.
ENON00921-1
Note
After use, leave the outboard motor
upright for a minute to drain the water
from inside the engine.
ENOM00062-1B

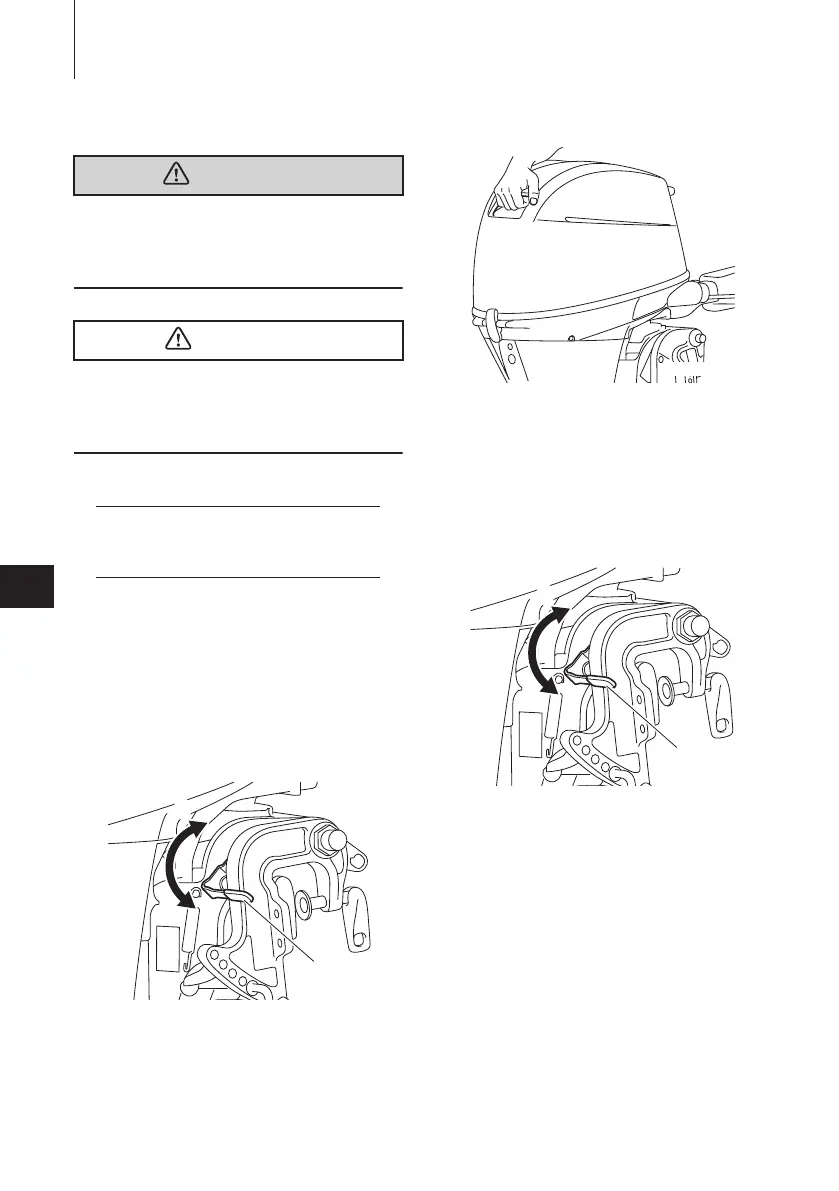

Manual Tilt type
Tilt up
Push the reverse lock lever down until it
stops. (This is the tilt up position.) Then,
tilt the outboard motor all the way up
until it is locked in place.
1. Reverse lock lever
2. Tilt down position
3. Tilt up position
ENOM00063-1
Tilt down
Pull the reverse lock lever upward until it
comes to a stop (This is the tilt down
position), lift up the outboard motor to
free it from the reverse lock, then release
to lower the outboard motor.
1. Reverse lock lever
2. Tilt down position
3. Tilt up position
ENOM00069-B
Power Tilt type
Tilt up
1. Operate the Power Tilt switch and tilt
the outboard motor up.
2. Lock the tilt with the Tilt stopper after
the outboard motor has been tilted
up
WARNING
CAUTION
2
3
1
ENOF02526-0
2
3
1
ENOF02526-0
To Next Page
