INSPECTION AND MAINTENANCE 77
10
ENOM01901-0
Oil filter replacement
ENOW00091-1
You may be injured due to high engine tem-
peratures if you fill engine oil just after oper-
ation. Engine oil should be changed after the
engine has been cooled.
ENOW00926-0
Wipe off engine oil well immediately if spilled
and dispose of it in accordance with local
fire prevention and environment protection
regulations.
1. Drain oil from the engine.
2. Remove the yellow cap on the oil drip
tray under the oil filter. Attach the
hose to the nipple on the tray (hose
inner diameter: 12.0 – 12.7 mm or 1/2
inch). Set the oil drain pan on the
other side of the hose.
3. Unscrew old filter by turning the filter
to counter-clockwise.
4. Clean the mounting base. Apply a film
of clean oil to the O-ring on the new
oil filter. Do not use grease.
5. Install oil filter and tighten it to speci-
fied torque by using oil filter wrench.
Oil filter torque:
18 N·m (13 ft
·lb, 1.8 kgf·m)
6. Wipe up any spilled oil. Install the oil
drip tray plug.
ENON00028-A
Note
If a torque-wrench is not available when
you are fitting an oil filter, a good estimate
of the correct torque is 3/4 to 1 a turn past
finger-tight. Have the oil filter adjusted to
the correct torque as soon as possible with
a torque-wrench.

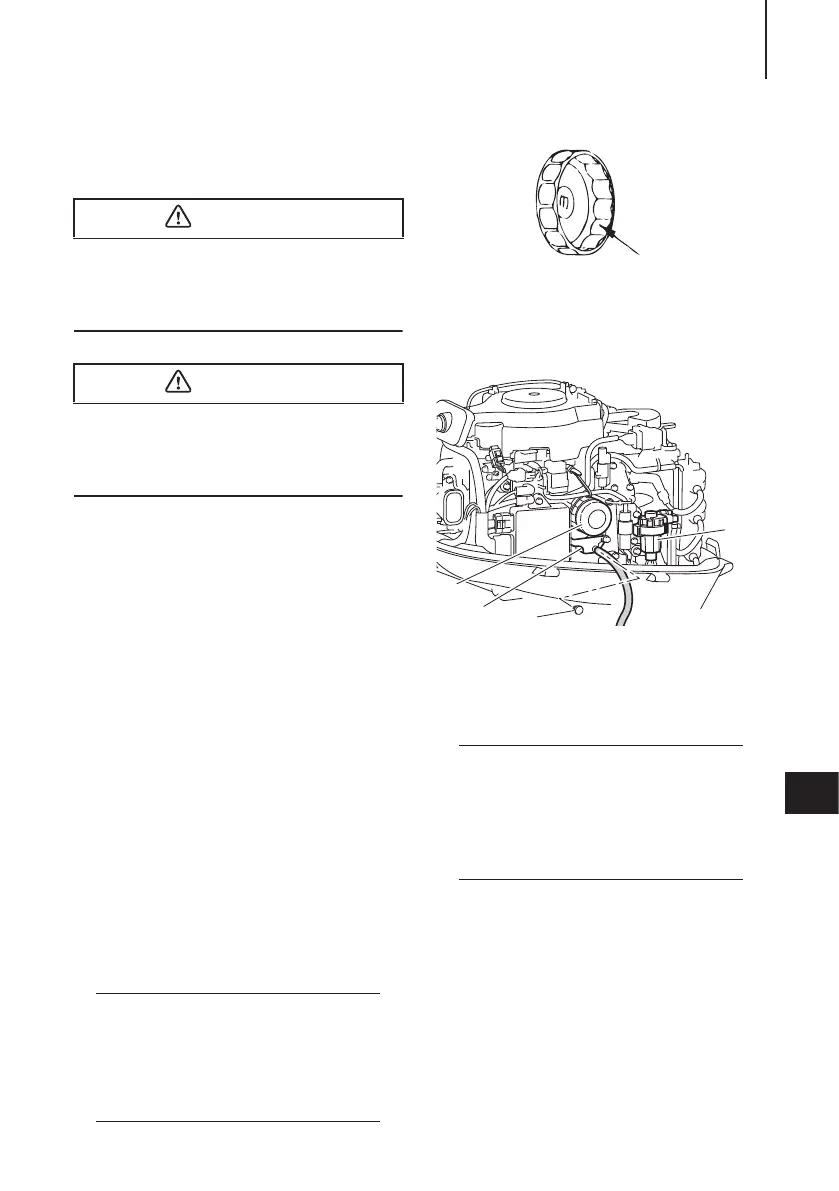

1. Oil filter wrench
P/N 3AC-99090-0
P/N 3AC99090M
(US. CANADA Only)
1. Oil filter
2. Fuel filter
3. Oil drip tray plug
4. Oil drip tray
ENON00028-A
Notes
z The oil drip tray can be removed and
cleaned with removing single bolt.
z By leaving few hours after the last
operation, the amount of spilled oil will
be reduced when removing the oil fil-
ter.
CAUTION
CAUTION
