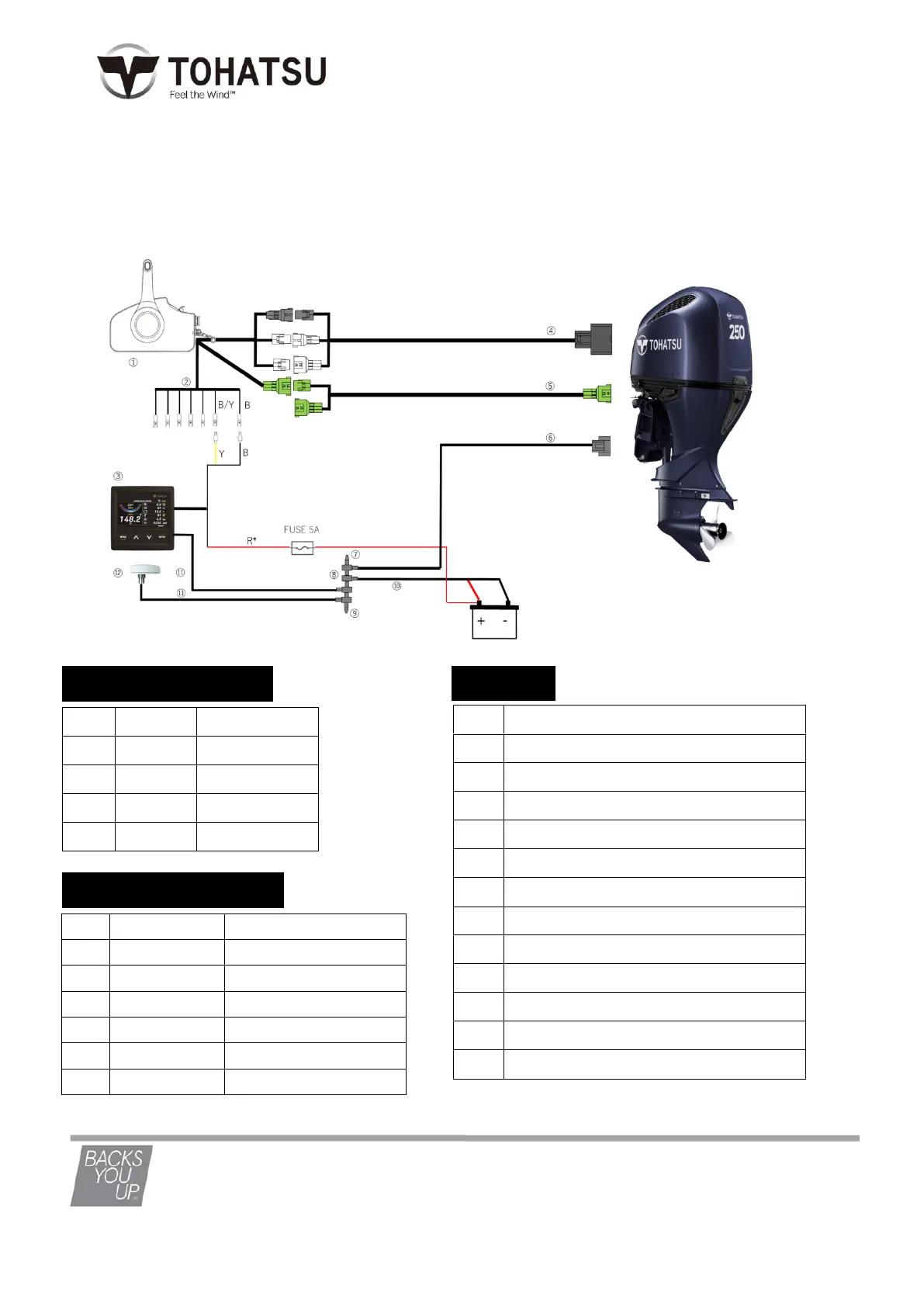

TOHATSU MFS 30C Quick Reference Guide

21-025 US
BFT 60-150 & 200-250D Mechanical Models
Code
Color
Function
Gr
Grey
Tach
B/Y
Black/Yellow
+12V key ON
Y
Yellow
Oil Pressure
B
Black
Ground
R/W
Red/White
Boat Instrument Light +
Y/L
Yellow/Blue
Trim
Code
Color
Function
B
Black
Ground
Y
Yellow
+12V key ON
R*
Red
+12V always ON
Br
Brown
Fuel Gauge signal
No.
Description
①
SIDEREMOTE CONTROL BOX ASSY
②
METER LEAD WIRE
③
TOCS 4.3" LCD DYSPLAY
④
CONTROL PANEL CABLE ASSY
⑤
PGM INDICATOR CODE
⑥
ENGINE DROP CABLE
⑦
TERMINATOR (FEMALE)
⑧
TEE CONNECTOR
⑨
TERMINATOR (MALE)
⑩
BATTERY CABLE
⑪
BACKBONE CABLE
⑫
GPS MODULE
Display Lead Wire Color Code
Meter Lead Wire Color code
Parts
