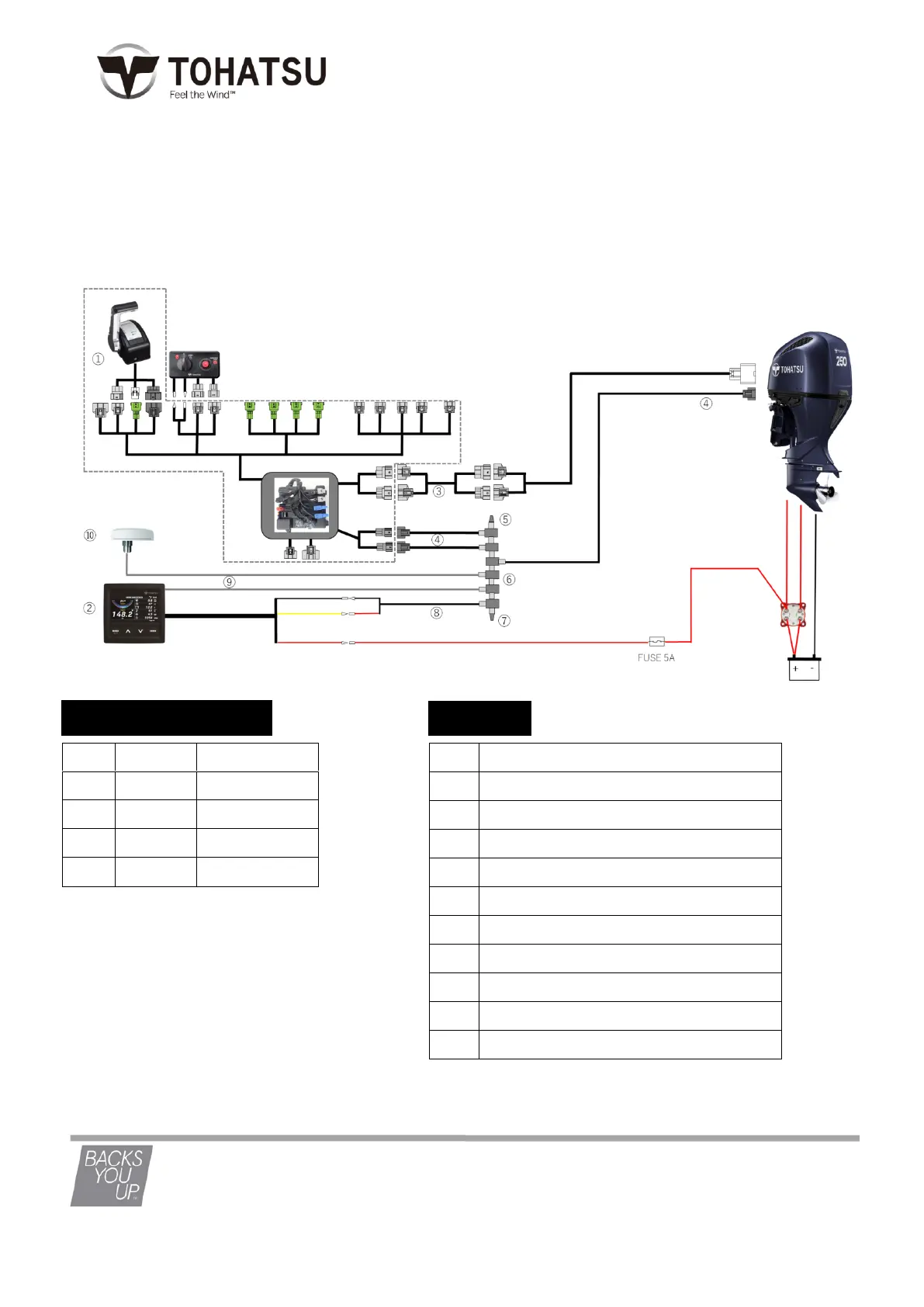

TOHATSU MFS 30C Quick Reference Guide

21-025 US
BFT 200-250D DBW
Code
Color
Function
B
Black
Ground
Y
Yellow
+12V key ON
R*
Red
+12V always ON
Br
Brown
Fuel Gauge signal
No.
Description
①
BOX KIT, R/C(TOP/S) (MAIN)
②
TOCS 4.3" LCD DYSPLAY
③
CABLE ASSY, DBW TRUNK
④
CABLE KIT, INTERFACE
⑤
TERMINATOR (FEMALE)
⑥
TEE CONNECTOR
⑦
TERMINATOR (MALE)
⑧
BATTERY CABLE
⑨
CABLE ASSY, NETWORK
⑩
GPS MODULE
Display Lead Wire Color Code
Parts
