INSPECTION AND MAINTENANCE72
10

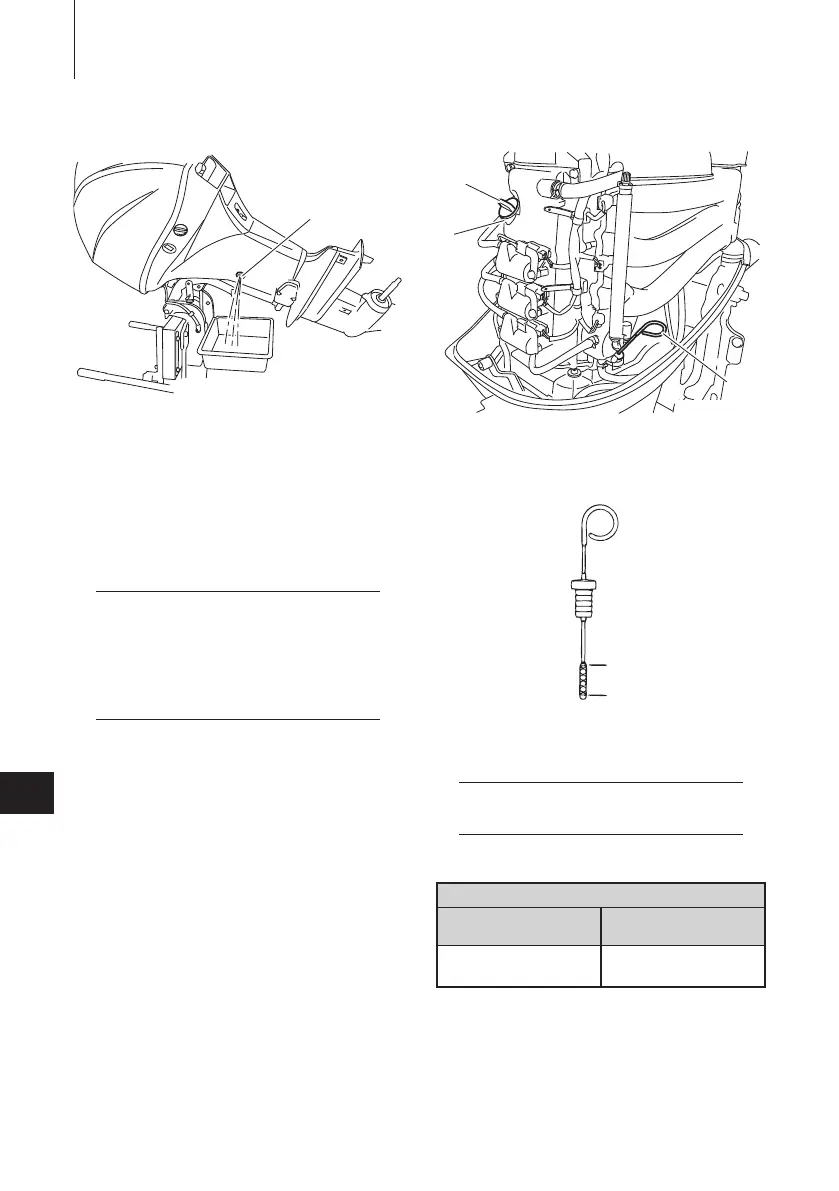

1. Drain hole
6. Tighten the oil drain screw with apply-
ing oil on the sealing surface of screw.
(Use new oil drain washer)
Oil drain screw specified torque
24Nm (17 ft
-lb, 2.4 kgf-m)
ENON00028-A
Note
If a torque-wrench is not available when
you are fitting a oil filter, a good estimate
of the correct torque is 3/4 to 1 a turn past
finger-tight. Have the oil filter adjusted to
the correct torque as soon as possible with
a torque-wrench.
7. Reset the engine in a vertical posi-
tion.
8. Repeat 2 to 7 procedures two or
three times to drain the oil com-
pletely.
9. Remove the top cowl and the oil filler
cap.
10. Fill the engine through filler port with
recommended oil to the middle of
dipstick mark.
11. Tighten the oil filler cap.
1. Filler cap
2. Dipstick
3. Filler port
1. Upper limit (Max.)
2. Lower limit (Min.)
ENON00920-0
Note
Use only recommended engine oil (See
page 30)
Oil volume needed for complete oil replacement
With oil filter replace-
ment
Without oil filter
replacement
Approximately 2400 mL
(2.5 US qt.)
Approximately 2200 mL
(2.3 US qt.)
