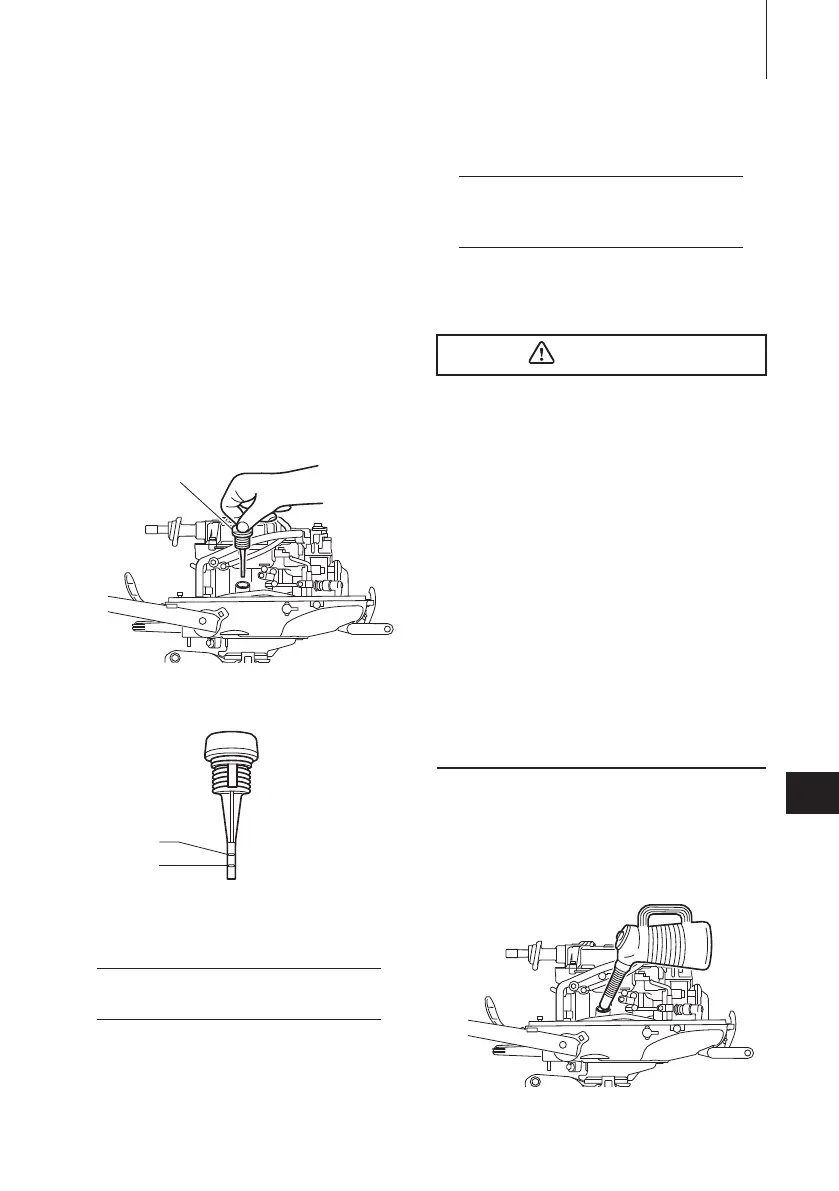

Oil level checking
1. Place the engine in a vertical position.
2. Remove the top cowl and the oil filler
cap (dipstick).
3. Wipe oil off the dipstick with a clean-
cloth and screw the dipstic back
completely.
4. Remove the dipstick again . Check the
oil level on the dipstick. Oil level must
be between the upper limit and lower
limit shown on the dipstick.
5. Return the dipstick.
1. Oil filler cap (Dipstick)
1. Upper limit
2. Lower limit
ENON00024-0
Note
The oil level should be checked when the
engine is cooled.
ENON00025-0
Note
Consult with an authorized dealer if the
engine oil is milky color, or appears con-
taminated.
ENOM00082-A
Engine oil replenishing
ENOW00079-A
z Do not add engine oil of brand and grade
other than existing one. In case engine oil
of other brand or grade is added, drain all
oil and ask dealer for treatment.
z In case other than engine oil such as gaso-
line is put in the oil chamber, empty the
chamber and ask dealer for treatment.
z When replenishing engine oil, be careful
not to allow entry of foreign matters such
as dust and water into oil chamber.
z Wipe off engine oil well immediately if
spilled and dispose of it in accordance
with local fire prevention and environ-
ment protection regulations.
z Do not replenish engine oil over upper
limit. If overfilled, remove oil to upper
limit. If engine oil is over the upper limit, it
can leak potentially leading to engine
damage.
If the oil level is low, or at lowest mark,
add recommended oil to the middle dip-
stick mark.
1
2
ENOF01531-0
CAUTION
ENOF00448-1
