TOHATSU MFS 6C - Remove, Inspection and Installation of Tiller Handle

7-15
4st 4/5/6 2011
7
5) Remove, inspection and installation
of tiller handle.

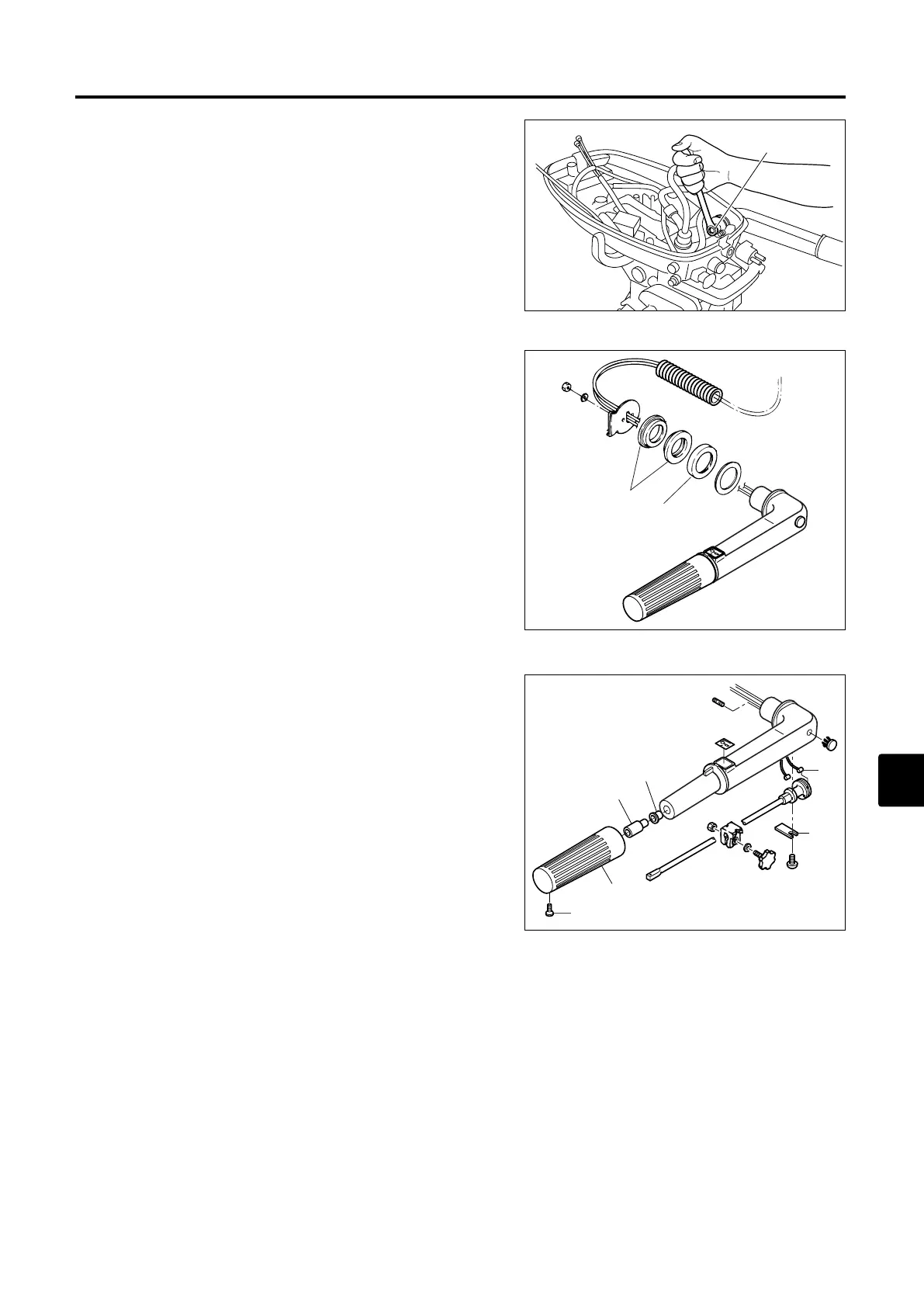

1. Loosen stud bolt 1 of tiller handle, and remove tiller
handle from bottom cowl.
3. Loosen throttle grip screw 4 and remove the grip 5.
Remove throttle shaft supporter 6 screw.
Check bushing 7 and throttle shaft dumper 8 for
damage.
4. Check throttle wire 9 for break, bend and crack, and
replace if necessary.
1
3
2
4
5
8
7
6
9
2. Check tiller handle spacer 2 and bushings 3 for wear
and damage.
