TOHATSU MFS 9.9 Service Manual

3
4st 9.9/15/20 2009
CENTER LINE
76.6mm
(3.00in)
63.8mm
(2.51in)
51mm
(2.00in)
18mm
(0.71in)
18mm
(0.71in)
18mm
(0.71in)
18mm
(0.71in)
187.7mm
(7.37in)
275mm
(10.80in)
36mm
(1.41in)
76.6mm
(3.00in)
TOP OF
TRANSOM
DIA
MET
ER
36 (1.
42in)
DIAMETER
10 (0.39in)
DIA
METER
10 (0.39in)
97.5mm
(3.83in)
97.5mm
(3.83in)
94.2mm
(3.70in)
94.2mm
(3.70in)
97mm
(3.81in)
97mm
(3.81in)
10mm
(0.39in)

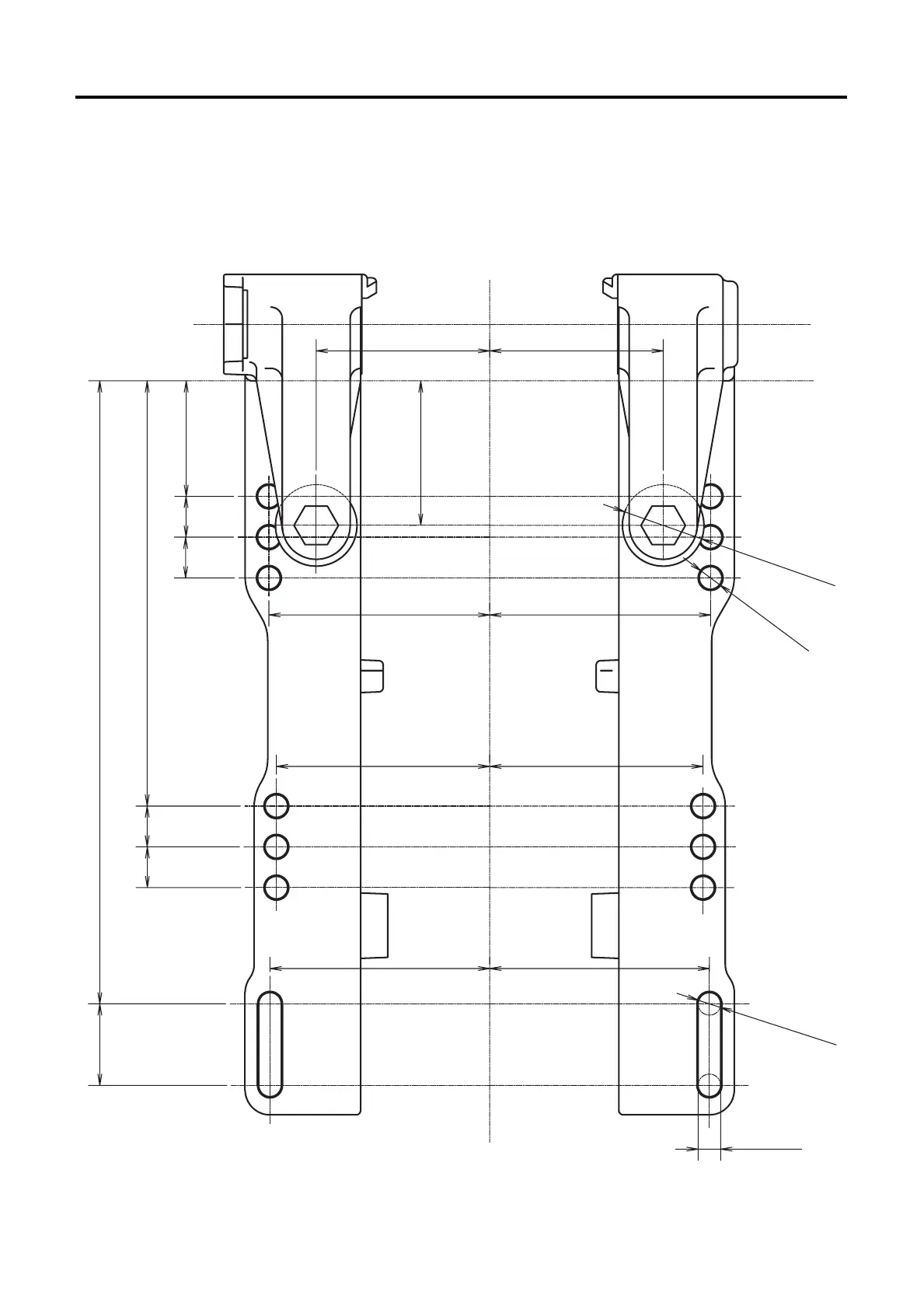

2) Transom Bracket Dimensions
