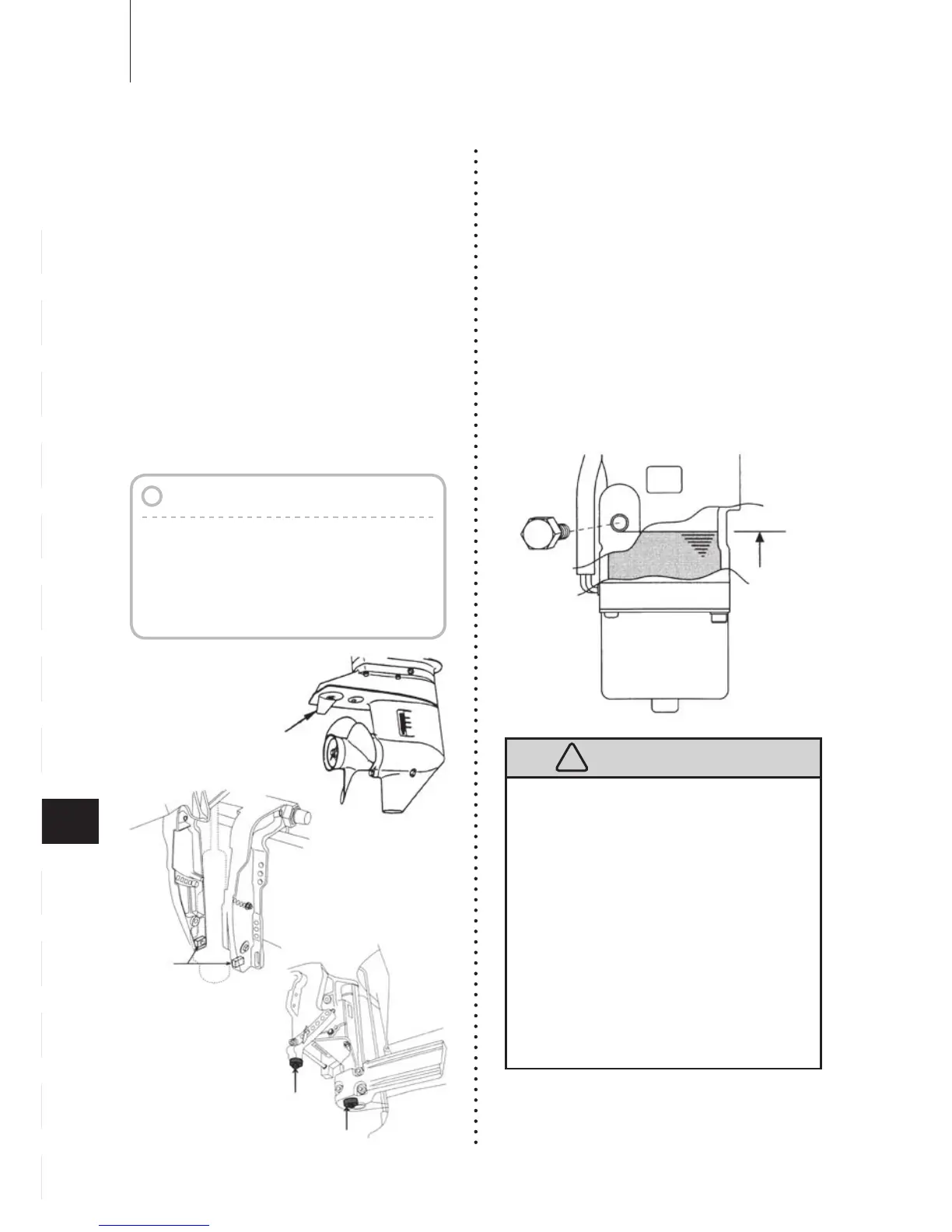

Checking and Refilling Oil in the
Power Trim & Tilt.
①
Check the oil level of the reservoir
tank as shown on the right while
the tank is kept in a vertical
position. Tilt the outboard motor up
to check the oil level in the tank.
Remove the oil cap by turning
counter-clockwise, then check if
the oil level reaches the bottom
line of the plug hole.
Replacing the anode
The anode protects the outboard
mo t o r fro m g al v a n ic c o rro s i o n
(metal corrosion caused by feeble
electoricity).
Anodes are installed under the unti-
ventilation of the gear case, the left
cramp bracket (port side) and the left
mount bracket (port side).
When an anode is worn down under
2/3 of its original size (of new port),
replace it.
48
14
13
12
11
10
9
8
7
6
5
4
3
2
1
INSPECTION AND MAINTENANCE
Notes
●
Never grease or paint the anode.
●
At each inspection re-tighten the
anode attaching bolt. As it is likely
to be subjected to electrolytic
corrosion.
●
Be sure that outboard motor is
secured to transom or service
stand, or accidental drop or fall of
outboard motor could lead to severe
personal injury.
●
Be sure to lock outboard motor if
it is tilted up, or accidental fall of
outboard motor could lead to severe
personal injury.
●
Do not go under outboard motor
tilted up and locked, or accidental
fall of outboard motor could lead to
severe personal injury.
