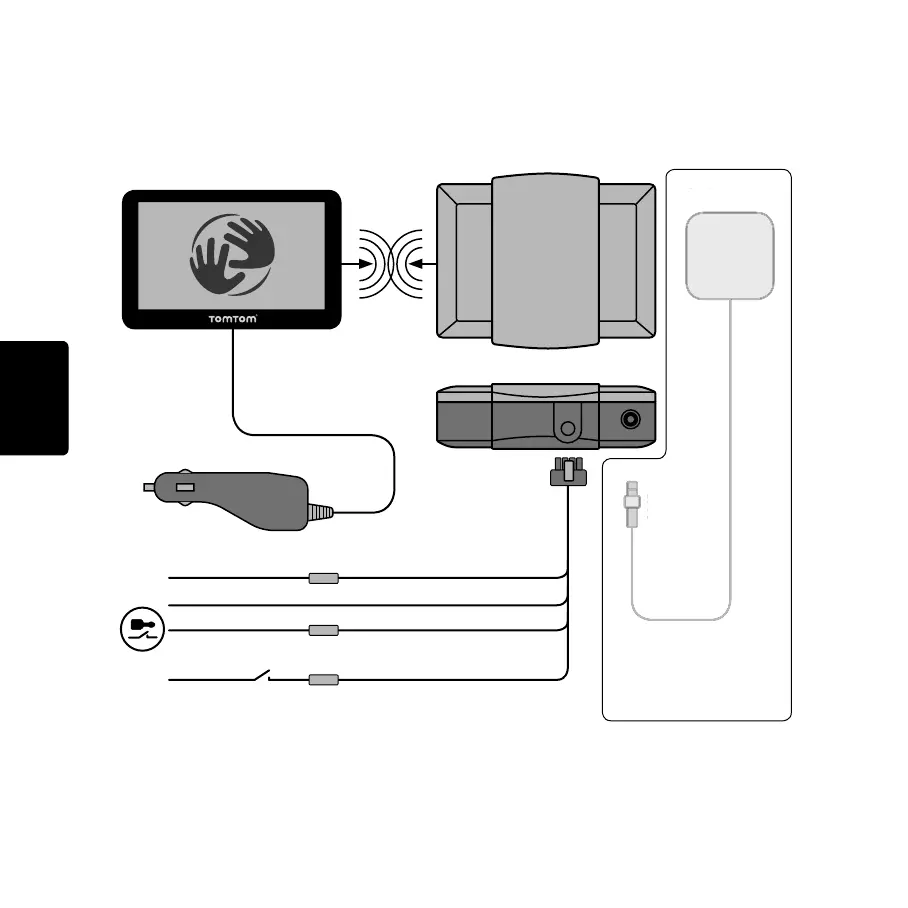

Aansluitschema
88
NL
Aanslu-
itschema
* Zie Technische gegevens op pagina105
** Controleer of deze draad is voorzien van
een 15 A-zekering.
SMB
GPS-antenne
S
MB
G
P
S
-antenn
e
Bluetooth
TM
Voedingskabel
+9-30VKlem 30**
GNDKlem 31
IN 1+9-30V (groen/blauw)
(bruin)
(rood)
F1 2Af*
F2 2Af*
F3 2Af*
(zwart)
IGN
(+9-30V)Klem 15**
Optioneel
TomTom GO 7000
TomTom PRO 7xxx
TomTom LINK 300/310
IG_NL.book Page 88 Tuesday, February 1, 2011 11:57 AM
