TomTom XL User Manual

4
First, check that the battery is properly charged. To charge the battery, connect your
device to the car charger. It can take up to 2 hours to fully charge the battery.
If this does not solve the problem, you can reset the device. First turn your device off and
wait for at least 10 seconds. Then use a straightened paper clip, or something similar, to

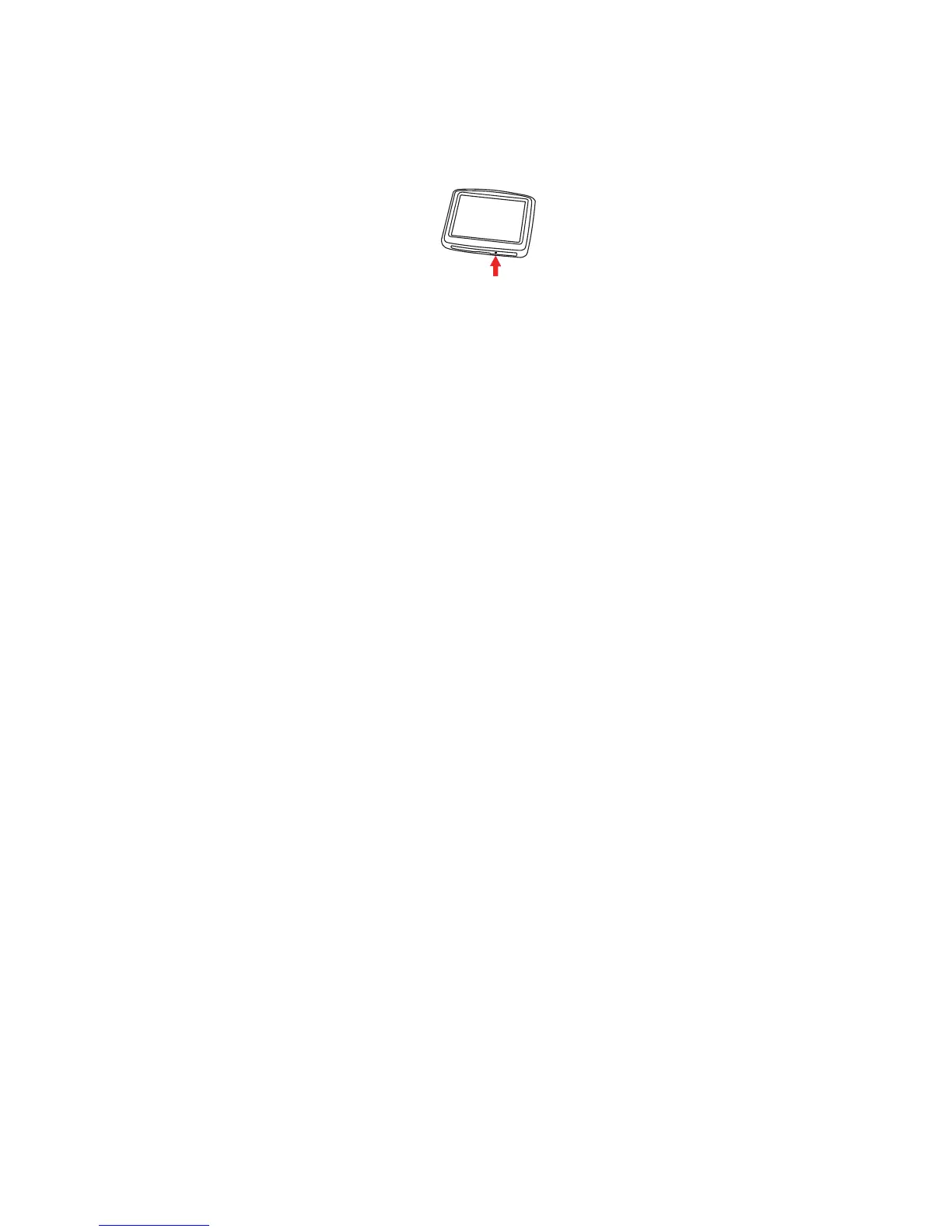

push the reset button. The reset button is on the bottom of your device.

TomTom XL Specifications

General

Auto	Yes
Marine (chartplotters, sounders)	No
Form factor	Handheld
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
Display number of colors	65536 colors
Internal memory	32 MB
USB 2.0 ports quantity	1

Weight and Dimensions

Depth	83 mm
Width	118 mm
Height	25 mm
Weight	186 g
