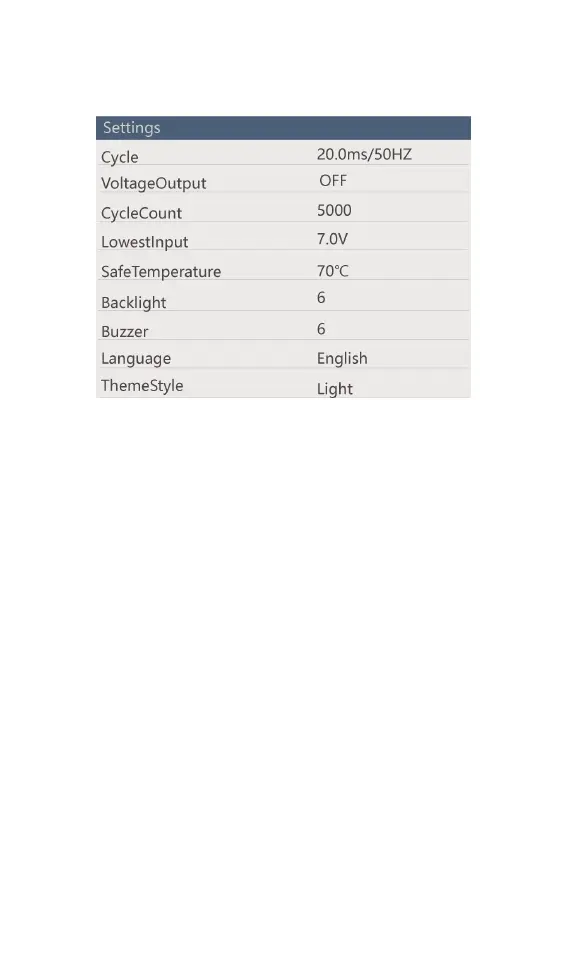

enter the system setting interface, and rotate [Knob] to
switch the corresponding settings, as shown below:
Cycle: Output the period of the PWM signal, ranging
from 1 millisecond to 30 milliseconds.
VoltageOutput : The output voltage of the main port has
11 gears, including turnoff, 5V, 6V, 7.4V, 8.4V, 12V, 14V, 15V,
16V, 18V, 24V, 28V. When it is turnoff, the main port does
not output voltage, the PWM output port voltage is 5V,
and the load power is 15W. If the load power exceeds
the load, it will prompt “Please turn on the main port
power”. For 5.0V-8.4V, the main port and PWM output
ports are 5.0V-8.4V. For 12V-28V, the main port output
voltage is 12V-28V, and the PWM output port is 5V,
which can drive large servos.
CycleCount: When using the internal signal source, a
count will be generated, and when the set number of
work times is reached, the operation will stop.
LowestInput: Below this voltage, the device will stop the
